Baffle Range Hood Filter - Stainless Steel, Aluminum, Galvanized Steel

Baffle range hood filter, also called baffle grease filter or grease baffle filter, is a kind of range hood filter in a range hood ventilation system. Baffle range hood filter is made of aluminum, stainless steel and galvanized steel. The layers of roll-formed baffles are designed to catch oil smoke, prevent oil and flame, making the kitchen clean and safe. Baffle range hood filter has a highly effective (approx. 94%) oil smoke purification and fireproof function. Three or more hood filters are needed in a range hood and they are widely used in domestic kitchen, kitchens in restaurant, dining hall in government, school, etc.

A stainless steel baffle grease filter fixed by sturdy frames with rivets

495mm W × 495mm H × 48mm D stainless steel baffle grease filterAn aluminum baffle grease filter has handles on both vertical sides of the frame for easy assembly and removal

406mm W × 254mm H × 50mm D aluminum baffle grease filter has two handles for convenient removal and holes on frame for easy catching oil

Detailed structure of aluminum baffle range hood filter handle welded in the middle of the frame

The handle welded on the frame provides convenience for range hood filter assembly and disassemblyA detailed display of sturdy stainless steel baffle range hood filter frame

The sturdy range hood filter frame stabilizes range hood filters

Features:

Galvanized steel grease baffle filter with two layers of baffles resists corrosion, rust. And it eliminates oil and flame as well.

609mm W × 609 H × 50mm D galvanized steel grease baffle filter withstands high temperature in harsh conditions

Baffle range hood filter is made of stainless steel, heavy duty aluminum steel or galvanized steel. The rigid structure ensures the filter durable.

Stainless steel grease filter has anti-corrosion, anti-rust, easy-to-wash property.

Aluminum grease filter is lighter for easy handling.

Galvanized grease filter has smooth surface and won't stain.

Withstand high temperature ranging from 250°F to 700°F.

High efficient oil smoke purification and fireproof function.

Baffle-design filters accelerate the oil smoke flow speed and prevent oil dripping into the food.

The baffle style filter is beautiful and sleek.

Standard size of filters fit into standard range hoods.

Easy to install and remove from the range hood with handles.

Easy to wash with brush and detergent in hot water.

Environmentally friendly and energy efficient.

Low maintenance and economical in price.

Baffle Range Hood Filter Specification

Material stainless steel 201/304/430, aluminum, galvanized steel.

Thickness 0.4mm - 0.5mm

Rated airflow (m3/second) 1.2 - 1.8

Temperature endurance 250°F, 450°F, 900°F

Normal size (W × H × D) (mm) 390 × 390 × 48, 395 × 395 × 48, 395 × 495 × 48, 406 × 254 × 50, 406 × 305 × 48, 406 × 406 × 48, 406 × 508 × 48, 406 × 635 × 48, 490 × 490 × 48, 495 × 495 × 48, 495 × 395 × 48, 495 × 395 × 45, 500 × 500 × 25, 500 × 500 × 30, 500 × 500 × 48, 508 × 254 × 48, 508 × 406 × 48, 508 × 635 × 50, 508 × 635 × 48, 609 × 609 × 50, 625 × 395 × 48, 625 × 495 × 48, 635 × 508 × 48, 635 × 406 × 48, etc.

Weight (kg) (according to the size) 2.49, 2.72, 2.95, 3.18, 3.63, 3.86, 4.65, 5.22, 5.44.

Package

Packed in a waterproof polybag then into carton with 5 - 6 pieces.

Wrapped with fixed belt.

Then load them onto a pallet with 20 - 30 boxes.

Set in the container.

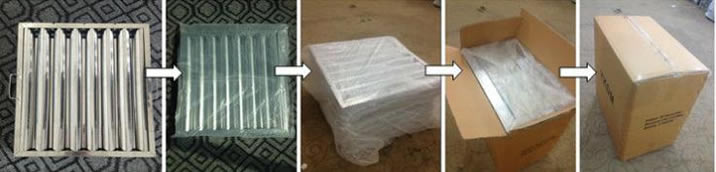

Baffle grease filters are wrapped in polybag, then they are put into the carton and closed by fixed belt

Strict packaging ensures baffle grease filter's safety

Structure
