Our 20kW AC-DC vehicle charging modules feature multiple charging modes, power factor correction, dynamic grid support, and temperature management systems. Additionally, these modules feature fault diagnostics and alarms, scalability and interconnectivity, as well as comprehensive charging solutions, including data logging and analysis. Moreover, these charging modules are certified and compliant with all relevant product safety, reliability and compatibility standards. Efficient energy conversion and conservation, as well as environmental protection, are just a few of their many attributes. They provide an efficient, safe and convenient charging experience for electric vehicles.

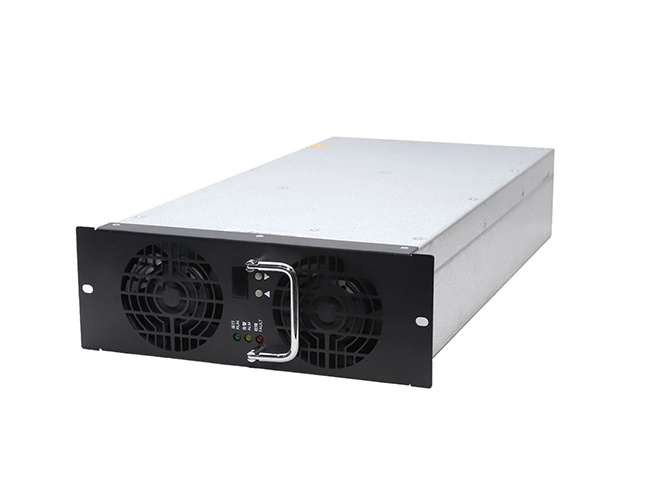

Specifications of 20KW 100V Low Voltage High Current Charging Power Module

Module MXR100200

Input Characteristics Input Voltage 285-475Vac, three-phase + PE

Input Current 1000m, the working temperature decreases by 1℃ for each additional 100 m

MTBF >500000 hours

Basic Indicators Size(W×D×H) 226×395×84mm

Weight ≤11kg

Efficiency(full load) >95%

Cooling Mode Forced air cooling

Standby Power consumption 8.5W+/-0.5W

Communication Method CAN bus

Parallel Module Quantity ≤60 pieces

Indicator Green: normal operation  Yellow: alarm   Red: fault

For more information about low voltage ac to dc converter, please feel free to contact us!

There are many ev dc fast charger manufacturers, but we are one of the best choices for you.
