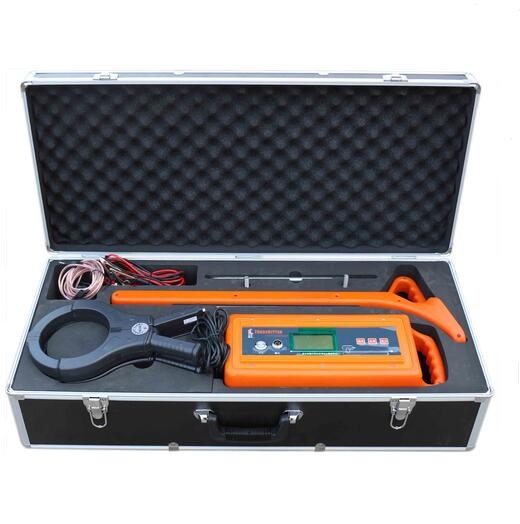

The TEGX507 cable fault locator is designed based on the application of the principle of communication based on electromagnetic induction. It is user-friendly design. The signal strength of the large-screen LCD is displayed. The grid, arrow and sound prompts make it easy for the operator to judge the underground position and the fault point of the cable. One person can do all the work.

Main Features:

1. Pinpoint buried cable fault; seeking the 50Hzcable path measurement;

2. with rechargeable batteries, no need electricity, easy to field operations;

3. Continuous automatic impedance matching, multiple detection modes, for a variety of complex pipeline detection;

4. Multi-antenna, multi-channel, direct display cable depth;

5. Current measurement for parallel pipelines; built-ohm meter to measure the loop resistance.

Transmitter technical Specifications:

Work Frequency: Low frequency（815Hz）Middle frequency（8kHz）、High frequency（33 kHz）、Radio frequency（83 kHz）、50Hz

Antenna mode: Wave Valley Method (Zero Value Mode), Peak Method (Peak Mode), and Step Voltage Method (A-frame)

Work mode: Direct connection method, inductive method, coupling method

Audio indication: according to signal intensity to adjust audio.

Current indication: Show the value of actual current of the testing cable(mA)

Battery Type: 6 two number Batteries (Alkaline)

Signal strength: bar graphs, numbers range from 0 to 999

Dynamic range: 100dB

Testing depth: Max more than 5m

Testing distance: The cable with good insulation can reach up to 15km in direct connection method

Depth measurement: press the depth key three digits display, the maximum measurable depth is up to 10 meters

Accuracy*: Low frequency: ± (1-5)% ≤ 2.5 m RF: ± (5-12)% ≤ 2.5 m

Depending on the site environment, the shape of the non-copper core, the number of adjacent lines, and the return current of the soil

Receiver technical specifications:

Operating frequency: audio, RF, 50Hz passive AC frequency

Antenna mode: trough method, peak method, step voltage method

Matching load: 5 ohms - 3000 ohms

Impedance display: five digits

Overheating and overcurrent: automatic protection

Power output: low, mid, high

Battery type: rechargeable battery

Battery life: 4 hours to 8 hours of continuous operation depending on the frequency of use, output power intermittent operation 6 hours to 10 hours depending on the frequency of use, output power
