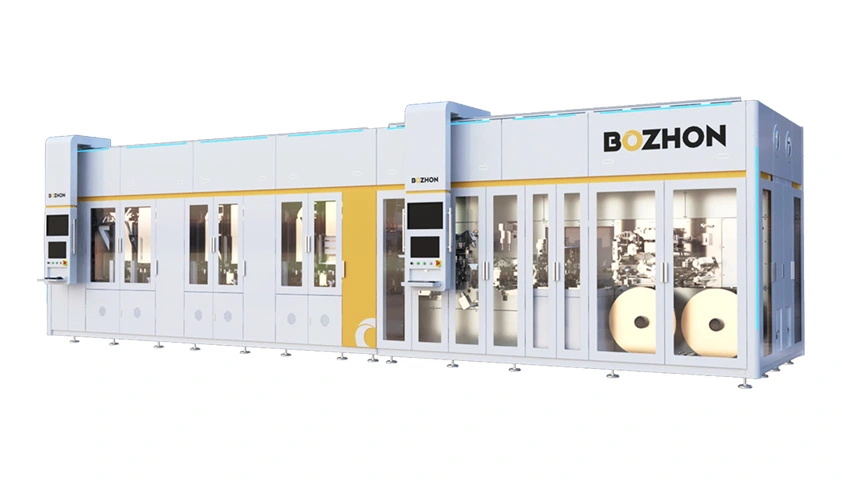

Cutting & Stacking Machine (Z-fold)

Applicable to the Z-fold technique for power/energy storage/digital battery

The procedure of this equipment is roll material feeding, cathode and anode cutting,

belt conveying, robotic arm grabbing, secondary positioning, separator unwinding, hot pressing, taping, cell unloading

The equipment integrates automation functions, including tape connecting, deviation correction, tensile detection, ultrasonic dust removal, size and defect detection, alignment detection

Parameters of Cutting & Electrode Stacking Machine (Z-fold)

Size L10m * W2.6m * H3m

Compatible range of electrode 100-330mm

Electrode cutting width 80-230mm

Overall effciency 300-400pmm

Single electrode effciency 0.45-0.55s

Electrode assist time 8s/J/R

Activation ≥98%

Yield ≥99.5%

Class 0.5µm ≤ 5000

Advantages of Cutting & Battery Stacking Machine (Z-fold)

Mini

Smaller volume compared

to common products

Advantages of Cutting & Pouch Cell Stacking Machine (Z-fold)

simplicity

Minimalist design style & extreme component

optimization to better stabilize the equipment

Advantages of Cutting & Stacking Machine (Z-fold)

High speed

First application of double acting mechanism

in the industry to continuously

break through efficiency bottlenecks
