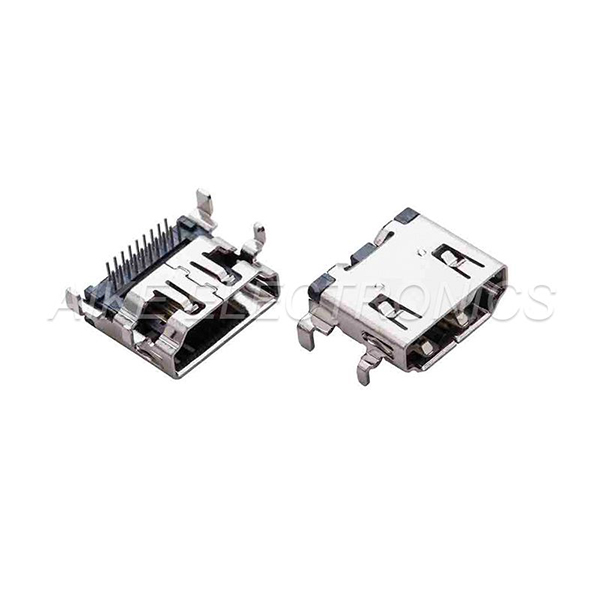

HDMI connector 19PIN DIP Type with through hole legs,sink PCB Board Type

Right Angle Connectors Factory

Computer USB Connectors Supplier

HDMI 19PIN Female, Receptable, DIP Type ,through holes and SINK PCB Board, Mount PCB, With good material, and good price.

Introduction：

19-pin HDMI connectors handle high bandwidth to support high-definition video and multi-channel digital in a single cable. This HDMI connector series is fully shielded for ESD protection and is RoHS compliant. Applications include digital televisions, set-top boxes, and DVD players. Meets HDMI 1.3 specification.

Type HDMI connector 19PIN DIP Type with through hole legs,sink PCB Board Type

Contact No. 19PIN

Materials For housing can be PBT,LCP,PA6T,PA9T and so on

For shell can be SPCC, Copper and so on.

Both are depands on customer request

Colour Normally Black or Customized Color

Plating For Shell, Ni and Tin Plating

For Contact,Au,Ni,and Tin Plating

Plating Thickness For Shell, 50U',100U' or Higher

For Contact, 1U',3U'5U'15U',30U' or Higher

Both are depands on custoer request

Machenical Contact current Rating:0.50A Min.

Dielectric Withstanding Voltage:AC 500V/minute

Insulation resistance:100M ohms Min

Contact Resistance:10m ohm

Electronical Mating Force:44.1N Max

Unmating Force:9.8N Min.;39.2N Max.

Application Mainboard,TV,Computer,Rejector,Game machine,smart home and Industrial etc.

Package Tape Reel Or Customized Package

Delivery Time Usually 25-35 days after receiving the 30% deposit

Payment terms TT, L/C, DP or Negotiable

Note This part is only one sample for this series products, we can change the shell, the legs and even housing to make lots of similar parts. We are so able to produce other standard as per the clients' requirements. Just let us know. We also d-Sub Connector Manufacturer.
