Intelligent auto-dimming

Smart Sync Zoom

Smart match, Hot-swappable

Real-time monitoring, intelligent control

Intelligent Temperature Control

Photoelectric conversion rate of 90%

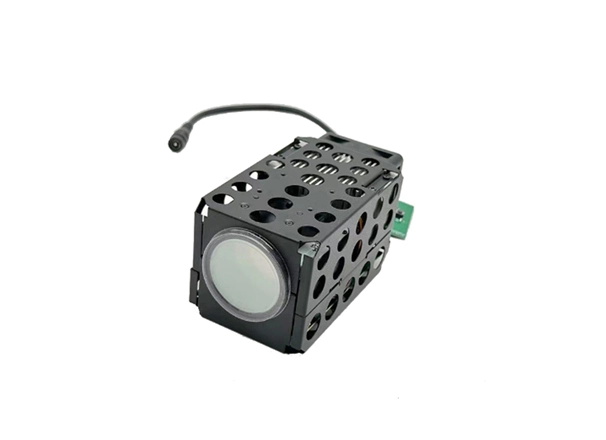

Technical Specification of 1550nm laser diode module SWIR Lenses & Accessories

Type IR-1550-2W

Size L W*H  128 x 65 x 66 mm

Weight ≈400g

Input Voltage DC 12V ± 10%

Input Current 1. 2A ± 0.2A

Initialization Time < 3s（From Tele To Wide）

Consumed Power ≤ 20W

Output Optical Power 2.0 ± 0.2W

Laser Wavelength 1550 ± 15nm（@25℃）

Illumination Angle 1.0° ~ 40°（Continuous zoom）

Spot Diameter φ 8.8m（@1 °, @500m）

Longest Illumination Distance ≥ 500m

Communication Interface RS 485/UART port TTL Default: 38400bps

Communication Protocol Pelco_ D

Operating Mode Continuous Working Mode

Operating Life ≥ 10000H

Storage Temperature -20℃～+50℃

Operating Temperature -20℃～+55℃

As a professional swir camera manufacturers, ghopto provides quality laser light module at competitive wholesale prices. Feel free to contact at any time.
