Wired glass, also named laminated glass metal mesh, is one of safety glass. It is formed through a special craft. When the glass is in semi-molten state, machines will compress the glass and wire mesh through metal rollers, and then wire mesh laminated glass is formed. And the metal mesh materials inlay in the glass could be woven wire drapery, ring mesh curtain, scale mesh curtain or other metal materials. This translucent decorative creates a hazy beauty and meets your aesthetic needs. Most importantly, as the new standards of technology has become to ensure the security conditions of buildings, wired glass is produced to offer safety guarantee for us. Besides prevent thieves from entering, wired glass is also fire prevention and shock impact resistance, especially for schools, public buildings, businesses offices that provide escape routes in case of fire or dangerous. Even the glass is broken, metal mesh can still keep glass fragments stick together and slow the spread of fire.

Golden cable wire mesh laminated glass, not far away is a car.

WG-1: Wired glass laminated with thin copper cable mesh.Ring mesh curtain laminated glass, and there is a car beside it.

WG-2: Wired glass laminated with ring mesh curtain.

Cable wire mesh laminated glass, the cable wire mesh is woven by red and blue metal wires.

WG-3: Wired glass laminated with woven wire mesh.Red scale mesh curtain laminates glass with label FL-804.

WG-4: Wired glass laminated with scale mesh curtain.

Specifications:

Product name: wired glass.

Color of inter-layer metal mesh: silver, golden, red, purple, blue, green, bronze, gray, etc.

Glass type: common laminated glass, tempered laminated glass, coated laminated glass, low-e laminated glass, silkscreen laminated glass, bulletproof laminated glass, fireproof laminated glass, etc.

Size: 2000×2500 mm, 2134×1830 mm, 2440×1830 mm, 1500×2000 mm, 1220×1830 mm, 1500×2550 mm, 1600×2000 mm, 1860×2520 mm, 1524×2134 mm.

Thickness: 5 mm, 6 mm, 6.5 mm, 6.8 mm, 7 mm, 8 mm, 10 mm.

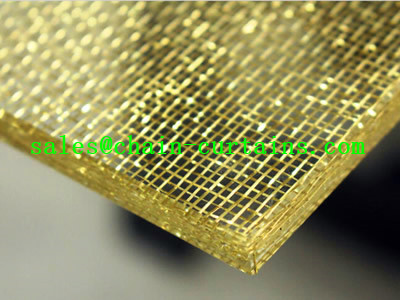

Its edge of wired glass, and wire mesh in it is copper mesh.

WG-5: Wire mesh inlays in the glass creates a hazy beauty.An enlarge view of fine wire mesh is sandwiched between two pieces of glass.

WG-6: Details about welded wire mesh laminated glass edge.

From its edge to see, the inner of wired glass is brass woven.

WG-7: Wired glass laminated with brass woven wire mesh.A part of wired glass laminated with woven wire mesh edge.

WG-8: The structure of wired glass is durable and solid, so theft or robber can't break it easily.

Features:
