LFP100Ah Standard Module Vda Lithium Ion Battery lithium iron phosphate 100ah

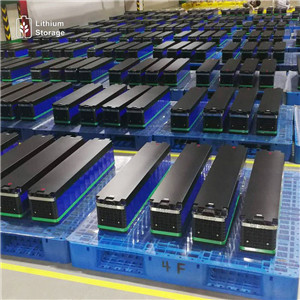

100Ah Lithium Ion Battery Pack Standard Module is composed of 1P8S LFP27173204-100Ah, data collecting unit of BMS and fixed fittings. The capacity and voltage of LFP100Ah Standard Module is 25.6V100Ah. Standard module as the standard group structure can be connected in series to expand voltage and in parallel to expand capacity.

Product Parameter Table

No.  Items STANDARD MODULE Note

LFP100Ah 1P8S-25.6V100Ah

1 Nominal voltage(V) 25.6

2 Operating voltage(V) min 20 T:25±3℃

3 max 29.2 　T:25±3℃

4 Nominal capacity(Ah) 100 1/3C，100%DOD

5 Nominal energy（KWh ） 2.56 1/3C，100%DOD

7 Group mode 1P8S

8 Module weight（kg） 19.74

9 Maximum continuous charge current（A） 100

10 Maximum continuous discharge current（A） 100

11 Maximum pulse charge current（A） 200 @10S，SOC≤70%

12 Maximum pulse discharge current（A） 200 @10S，SOC≥30%　

14 SOC operating range（%） 10~90

15 Module cooling method Natural cooling

16 Module heating method No Or  heating film

17 Temperature detector qty. 2

18 Shipping capacity (SOC) 50%±5 SOC is consistency in the same batch

19 Temp. Condition（℃） Charge 0~55

Discharge -20~55

Storage -30~55

20 Dimension L （mm） 273.5

21 Dimension W（mm） 177

22 Dimension H（mm） 220

23 Relevant product standard GB/T 31484—2015GB/T 31485—2015GB/T 31486—2015

Applications

Vda Lithium Iron Phosphate Battery products can be applied in trucks, cars, buses, forklifts as driving force and various energy storage systems.
