LFP135Ah Standard Module is the typical 355 VDA module and is composed of 1P4S LFP79148102-135Ah, data collecting unit of BMS and fixed fittings. The capacity and voltage of LFP135Ah Standard Module is 12.8V135Ah. Standard module as the standard group structure can be connected in series to expand voltage and in parallel to expand capacity.

Standard Module VDA Specification

No. Items STANDARD MODULE Note

LFP135Ah 1P4S-12.8V135Ah

1 Nominal voltage(V) 12.8

2 Operating voltage(V) min 10 T: 25±3℃

3 max 14.6 　T: 25±3℃

4 Nominal capacity(Ah) 135 1/3C，100%DOD

5 Nominal energy（KWh ） 1.728 1/3C，100%DOD

7 Group mode 1P4S

8 Module weight（kg） 11.6

9 Maximum continuous charge current（A） 187.2

10 Maximum continuous discharge current（A） 270

11 Maximum pulse charge current（A） 270 @10S，SOC≤70%

12 Maximum pulse discharge current（A） 405 @10S，SOC≥30%　

14 SOC operating range（%） 10~90

15 Module cooling method Natural cooling

16 Module heating method No Or  heating film

17 Temperature detector qty. 2

18 Shipping capacity (SOC) 50%±5 SOC is consistency in the same batch

19 Temp. Condition（℃） Charge 0~55

Discharge -20~55

Storage -30~55

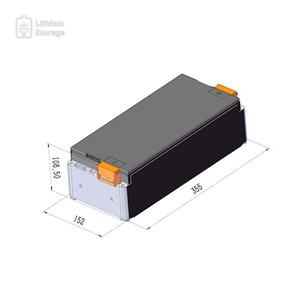

20 Dimension L （mm） 355

21 Dimension W（mm） 152

22 Dimension H（mm） 108.5

23 Relevant product standard GB/T 31484—2015

GB/T 31485—2015

GB/T 31486—2015
