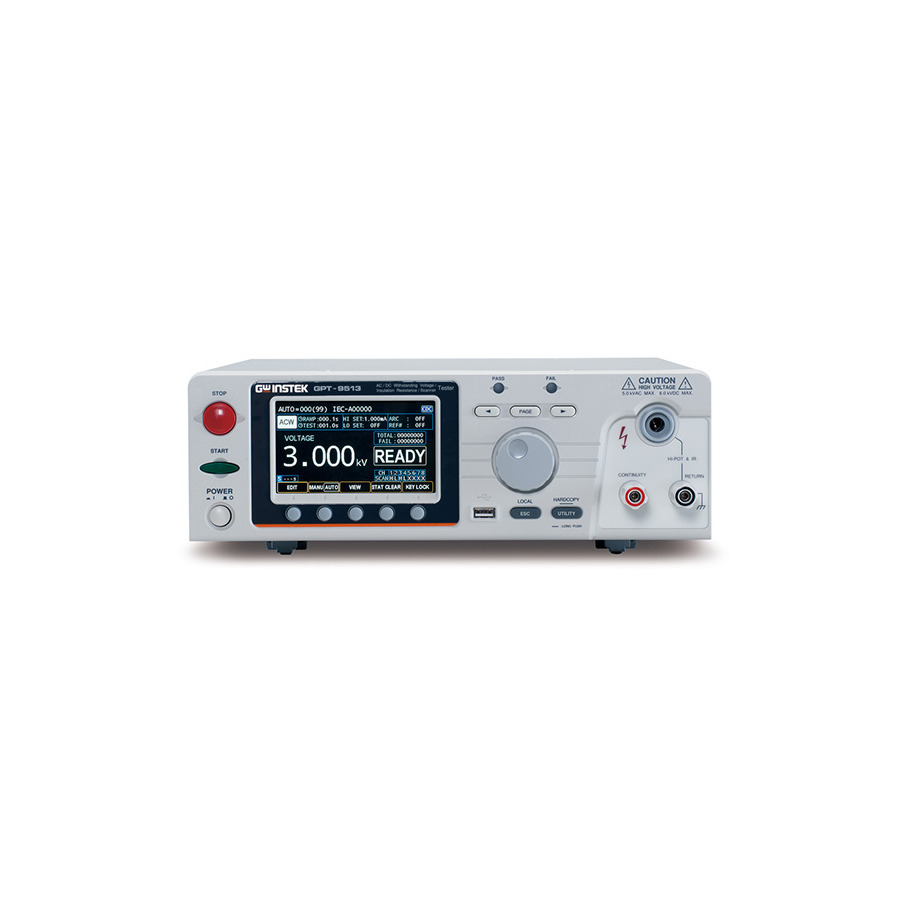

Instek GPT-9503: 8-Channel Hipot Tester with AC/DC/IR/C Testing and Channel Status H-X – Available at Navaro Calibration.

Product Overview:

The Instek GPT-9503 Hipot Tester is a versatile and powerful testing solution designed to meet the demanding requirements of electrical safety testing. With its 8-channel scanner and comprehensive range of test capabilities, the GPT-9503 enables efficient and accurate testing of a wide variety of electrical products.

Features:

8-channel scanner for simultaneous testing of multiple devices

AC, DC, IR, and C test modes

Channel status H-X for quick identification of failed channels

High voltage output up to 5kV AC/DC

Insulation resistance measurement up to 100GΩ

Capacitance measurement up to 100μF

Leakage current measurement up to 10mA

Built-in safety features for operator protection

Intuitive user interface for ease of operation

Remote control capability via USB or Ethernet

Specifications:

Voltage Range: 0 to 5kV AC/DC

Insulation Resistance Range: 0 to 100GΩ

Capacitance Range: 0 to 100μF

Leakage Current Range: 0 to 10mA

Test Modes: AC, DC, IR, C

Channel Status: H-X

Number of Channels: 8

Safety Features: Interlock, Overvoltage Protection, Overcurrent Protection

What’s in the Box:

GPT-9503 Hipot Tester

8-channel scanner

Test leads

Calibration certificate

User manual
