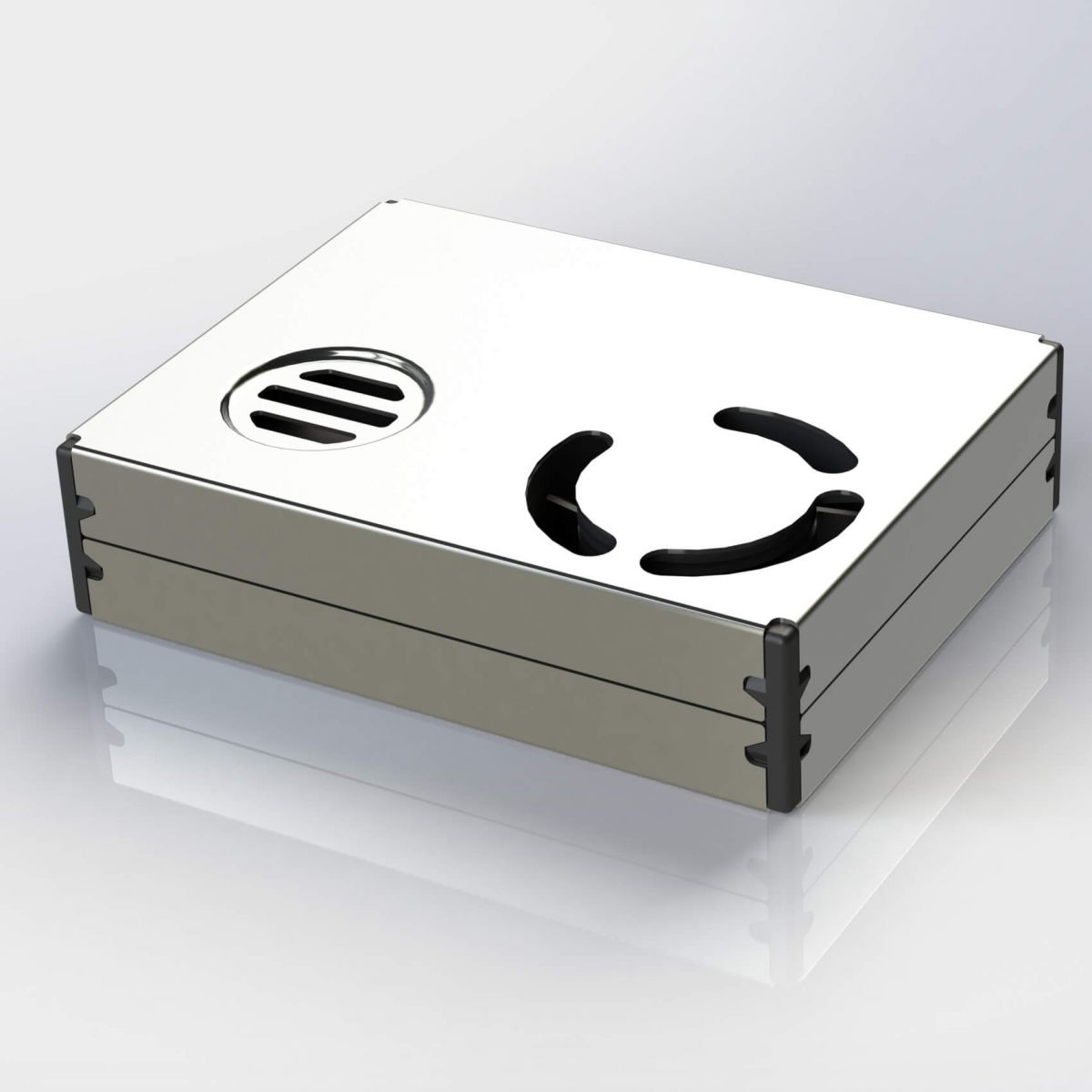

Laser Scattering Dust Monitor Maker: High Sensitivity Dust Monitors, Laser Scattering Principle, UART Data Interface, Good Consistency, Stable Digital Output.

Specification Parameters

Measurement Type: PM2.5

Measurement Range: 0-1000μg/m3

Measurement Consistency: ＞100μg/m3: ±10%; ＜100μg/m3: ±10μg/m3

Measurement Accuracy (Reference Standard: TSI 8530): ＞100μg/m3: ±10%; ＜100μg/m3: ±10μg/m3

Data Interface: UART 9600 bps

Inlet and Outlet: Front

Power Supply: DC 5±0.5V

Working Condition: Temp: -15-60℃; Humidity: 0-90% RH

Storage Condition: Temp: -30-70℃; Humidity: 0-90% RH

Weight: 24g

Size: 48mm x 37mm x 12mm

MTTF: ≥30000H (Intermittent Mode: Intermittent Operation)
