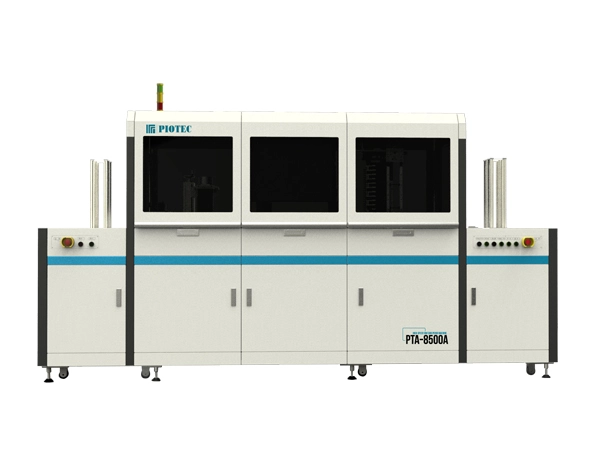

PTA-8500A High Speed SIM Card Personalization Machine

To meet high-volumn personalization production for SIM card with multi-chips, PTA-8500A was developed and put into the market in 2015. The PTA-8500A can perform high-volumn of various SIM cards personalization including chip encoding, laser marking and card surface information verification.

With more than 100 sets deliverie and proven by the market for over 8 years, PTA-8500A has become the mainstream SIM card personalization equipment. As a sim card making machine, our card personalization machine such as PTA-8500A serves the most famous SIM card manufacturers in China and even in the whole world.

Specifications of High Speed SIM Card Personalization Machine

Capacity 2000UPH

Dimension 3600mm×910mm×1900mm

Weight 800kg

Power Supply 220V （-5%~+10%） 50Hz 6KW

Noise ＜65dB

Operation 23℃±3℃

Temperature

Operation Humidity 50±10％

Compressed Air Pressure: 0.5Mpa Flow: 400L/min

Communication Interface Ethernet

Functions of High Speed SIM Card Personalization Machine

Input Module

1. Equipped with 2 removable input magazines with maximum capacity of 500pcs for each.

2. Automatic magazines exchange, chip absence and double-card detection can be realized.

Contact IC perso Module

1. Standard configuration: 32 contact IC perso stations with 64 perso heads and 16pcs of PIOTEC 4IN1 contact readers PT204PT-AMA.

2. Extensible configuration: 64 perso stations with 384 perso heads and 96pcs of PIOTEC 4IN1 contact readers PT204PT-AMA.

3. ISO cards, 2IN1, 4IN1 or 6IN1 cards can be persoed to meet customers' requirements for high compatibility and productivity.

Flipper

1. Equipped with 4 sets of flipping mechanism.

2. Double-sided marking and card output side changing can be realized.

Laser Marking Module

1. Equipped with 2 sets of high-speed laser marking modules.

2. Equipped with 2 sets of 50W fiber lasers.

3. Equipped with 2 extractors.

4. Uninterrupted laser marking and flexible configurable dual laser serial and parallel marking can be realized, which improves marking efficiency.

OCR Verification Module

1. Equipped with 1 set of 5 million pixel of industrial camera (including light source).

2. Equipped with 1 set of OCR software.

3. Card surface information (Digital number, Barcode, QR code, 25 code) can be recognized and verified.

Output Module

1. Equipped with 2 removable output magazines with maximum capacity of 500pcs for each.

2. Automatic magazine exchange and fullness detection can be realized.

Advantages of High Speed SIM Smart Card Making Machine

High Compatibility

High-volumn of personalization production for ISO, 2IN1, 4IN1, and even 6IN1 card.

To connect with Milling, Embedding, Punching, and Labeling machine id into SIM card smart production line.

High Stability

The patented technology of static perso tower ensures that the rejected rate is less than 1/1000.

The more than 10 years of proven PIOTEC industrial-grade reader ensures the stability and efficiency of chip encoding.

One operator can operate and manage 3~5 PTA-8500A at the same time.

High speed

The patented high-speed laser marking technology enables the laser marking uninterruptedly so that the utilization rate of lasers is up to maximum.

One-button switching between orders with different card specifications( (such as between 2in1 and 4in1 card) in the software is available, which largely reduces the order switching time.

The maximum production capacity reaches 36,000 chips/h, which improves the factory's income.

High Security

The data perso system has been proven by the market for more than 10 years.

The cards that failed to be encoded or marked can be automatically rejected and re-made online.

The OCR ensures that the information on the card surface is accurate.

Secondary development is fully supported to meet various customized data security needs.

Now the card making machine price is reasonable, if you have needs, please contact us.
