Description

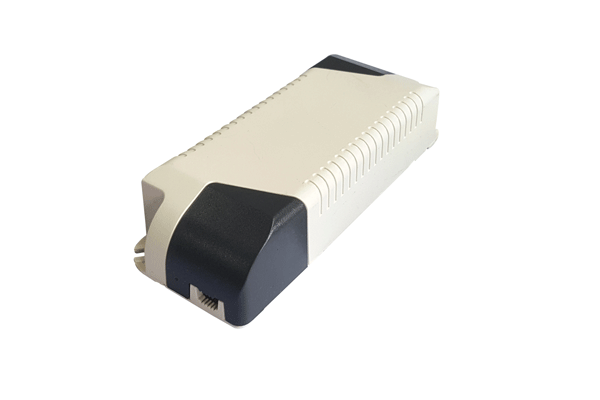

The 36W LED AC/DC drivers feature the constant voltage mode. The products operate from 100~240VAC and offer models with differentiated voltage ranging between 9V and 36V. Thanks to the high efficiency up to 85%, with the fanless design, the entire series is able to operate for -40°C ~0°C.

Specification

Ultra-small size, light weight, streamline, snap-button and easy to carry;

Competitive price design, high reliability;

Built-in over voltage, over current and short circuit protection;

Input Characteristics: voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 1.0A Max; Starting Time: 3s Max; Inrush Current: 20A/240VAC Max;

Output characteristics: constant voltage mode; high precision, low noise; Hold up time: 20mS Min;

Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH; Storage temperature: -20 ℃ -85 ℃, 5% - 95% RH;

Cooling mode: natural cooling;

Energy efficiency accordingly: ERP/ CEC-VI standard;

Safety standards: IEC/EN/UL60950;

M eet ROHS standards;

Pin Type: UL / VDE / BS / SAA/Argentina ;

Average failure rate: 50,000 hours;
