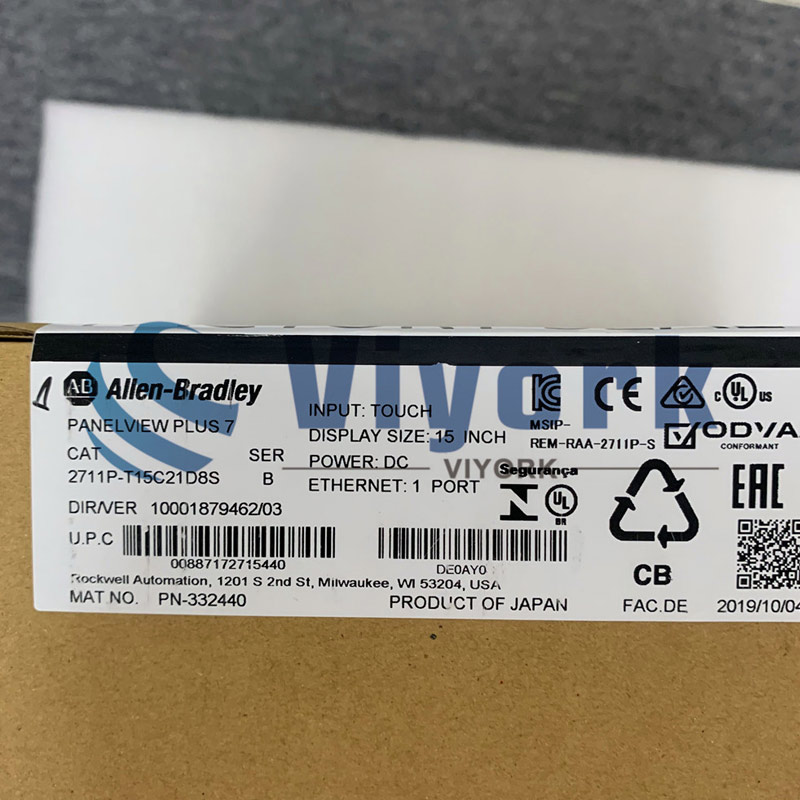

Technical Specifications for AB Touch Screen 2711P-T15C21D8S

Manufacturer Rockwell Automation

Brand Allen-Bradley

Part Number/Catalog No. 2711P-T15C21D8S

Product Line Panelview Plus 7

Input Type Touch Screen

Display Size 15 in.

Display Color TFT Color Display

Memory 512 Mb

Software FactoryTalk View Studio or Factory Talk ViewPoint

Input Voltage 24 VDC

Backlight LED

Weight 8.14 LBS

UPC 887172715440

About 2711p t15c21d8s

The Allen-Bradley 2711P-T15C21D8S is a 15-inch PanelView Plus 7 standard touch terminal. The software is the FactoryTalk View Studio, Machine Edition that is version 8.0 or later. The 2711P-T15C21D8S also has the FactoryTalk ViewPoint software that is version 2.6 software. Its storage memory is 512 MB RAM and storage and its user memory is 80 MB for non-volatile applications. The 2711P-T15C21D8S must secure one SD card slot to store application files. It has a color TFT LCD and an aspect ratio of 4:3. It has a Windows CE operating system that includes an FTP and a PDF reader. The 2711P-T15C21D8S also has third-party device support, a VNC client-server, and ActiveX controls. It has a 304 x 228 mm viewing area and a 1024 x 768 XGA with 18-bit color graphics. It has +/-2 minutes per month of battery accuracy, and at 25° C or 77° F, it has a lifespan of 4 years minimum. The battery can be replaced by a CR2032 lithium coin cell. The touchscreen is analog-resistive with an operating force of 100 grams. The actuation rating of the touchscreen is 1 million presses. The backlight is not replaceable, and its lifespan is 50,000 hours minimum at 40° C to half-brightness. The approximate weight is 3.07 kg or 6.75 lbs with an input voltage of 24V DC non-isolated. Its dimensions are 318 x 381 x 56.5 mm and the cutout dimensions are 290 x 353 mm. The power consumption is 50W maximum and it has a DIN-rail power supply.
