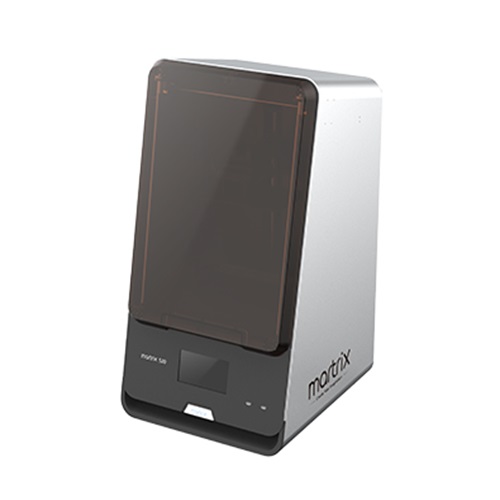

Martrix520

Matrix 3D Printer

The Martrix series represents professional-grade desktop printers.

- HIGH precision: easily achieve 0.15mm detail, and accuracy is comparable to SLA 3D printing DLP technology.

- HIGH efficiency: printing speed up to 50mm/h, forming a volume of one surface at a time.

- LOW usage cost: light source, screen, release film with long life & low replacement cost.

Martrix520 Technical Data

Build Volume 298 × 165 × 320 mm

( 11.73 × 6.50 × 12.60 in )

Printing Speed 90 mm/h

Pixel Size 50 μm

Layer Thickness 0.025-0.15 mm

Exposure Screen 13.6" Monochrome 7k LCD

Resolution 6480 x 3600

Light Output intensity - LCD Screen 6.0 mW/cm²

Wavelength 405 nm

Software Martrix ONE

Resin Vat Replaceable

Machine Dimensions 515 × 560 × 970 mm

( 20.28 x 22.05 x 38.19 in)

Machine Weight 68 kg
