China Cryogenic Butterfly Valve

Хидраулични вентили

НА БАРАЊЕ

Нови

Не се достапни

Не се достапни

Распрашува

Опис на производот

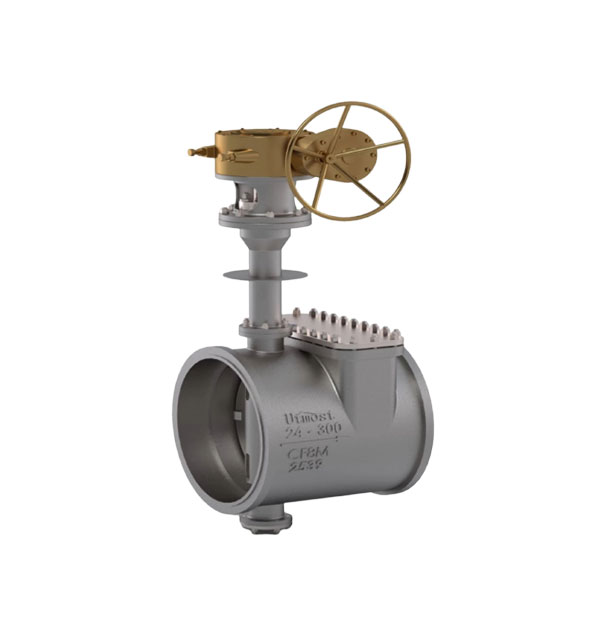

China Cryogenic Butterfly Valve

UTMOST is one of the professional cryogenic butterfly valve manufacturers that provides cryogenic butterfly valve for sale. The cryogenic butterfly valve has outstanding advantages such as reliable sealing, small opening, and closing torque, high low-temperature stability, and long service life. The actuator of this butterfly valve adopts worm gear, pneumatic, electric, hydraulic, and other driving methods. The cryogenic valve is widely used in liquefied natural gas, air separation, and other low-temperature industries. We also provide fluorine lined butterfly valve, soft seal butterfly valve and more products for sale. Contact us now!

Cryogenic Butterfly Valve Technical Specification

Size: 6"~48"(DN150~DN1200) larger sizes upon request

Pressure: Class ANSI #150~600, PN20~PN110

Temp.: -196℃~80℃

Standard compliance: ISO 5752, BS5155, API 609, MSS-SP-68, ASME B16.10, ASME B16.5, DIN3202.

End connections: Flanged Ends

Operation: manual, pneumatic, electric, or other

Cryogenic butterfly valve body material: low temp. carbon steel, stainless steel, and alloy steel, etc.

For more other specifications request, please contact with Utmost china valve factory.

Cryogenic Butterfly Valve Performance Parameter

Nominal pressure: CL150lb~CL900lb

Medium temperature: -196~120℃

Connection: Flanged RF

Body material: CF8, CF8M, CF3M, etc.

Trim material: 304, 316, 316L, etc.

Leakage level: IV

If you are looking for reliable control valve manufacturers china, don’t hesitate to contact us.
