Spacing: 12mm

Cable specification: 6AWG

Termination Mode: Wire end: Crimp; Board end: Soldering

Installation Method: Wire end: panel mounting; Board end: PCB board mounting

Installation Torque: 1.5±0.3N•m

Breaking Torque: 2.5N•m

Connection Mode: /

PCB Thickness: 2mm(Recommended thickness)

The Details of 141054 Rectangular Electrical Connectors China

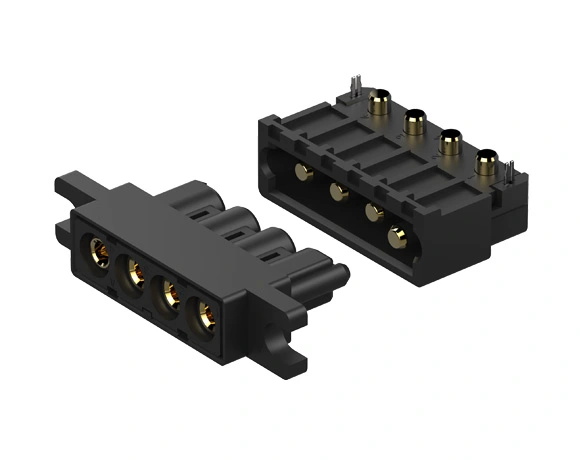

141054-JL-S4P (Plug)

The Details of 141054 Rectangular Electrical Connector

Recommended installation hole size

The Details of 141054 Rectangular Electrical Connector

141054 Socket accessories φ5.75-6AWG-Crown spring gold plated

The Details of 141054 Rectangular Electrical Connector

141054-JL-P4RW-5 Receptacle (Position 1 is a long needle)

The Details of 141054 Rectangular Electrical Connector

M4 floating installation screw

Specifications of 141054 Rectangular Electrical Connectors

Electrical Characteristic Pins 4 max

Rated Current 100A

Rated Voltage 1000V DC

Withstand voltage 2000V AC

Contact Resistance ≤1 mΩ

Insulation Resistance ≥1000MΩ DC 500V（normal temperature）

Mechanical Characteristic Overall insertion force 60N Max

Single leg separation force 6N Min

Mechanical life 500 times

Protection Class /

Materials and surface treatment Material Contact: copper alloy; base material: PBT+30%

Surface Treatment： 0.05μm Gold plating 0.05μm

Test Area /

Work environment Operating Temperature -55℃～+125℃

Relative Humidity 40℃, ≤90%

Salt Spray Test 48hours

Vibration 10-2000Hz, acceleration 147m/s², instantaneous interruption ≤1us

Shock Acceleration 490m/s2

141054 Rectangular Electrical Connector Technical Parameters

The telecom connectors should be used within the technical parameters provided;

Package Spec: /

Storage Spec: Products packed into boxes should be stored in a warehouse with an ambient temperature of -10°C to +40°C, a relative humidity below 80%, and no acidic, alkaline or other corrosive gases in the surrounding air. The storage period shall not exceed two years from the date of production.
