2-port 100M Media 3onedata Converter

Support 1 100M fiber port, 1 100M copper port

Support built-in power supply 220VAC, 48VDC, external power supply 5VDC

Support -10~60℃ wide operating temperature range

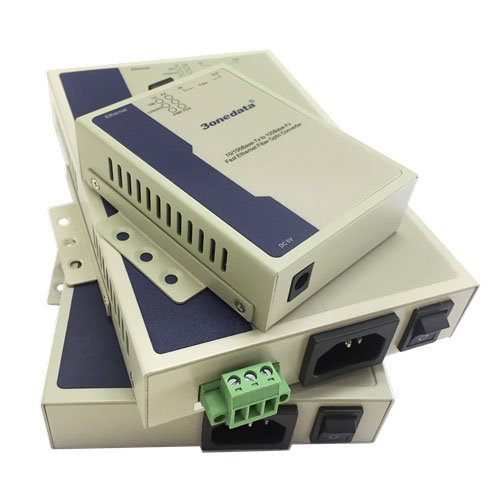

MODEL1100 series are 2 port media converter. It can convert Ethernet electrical signal into Ethernet optical signal to extend the transmission distance. It also has good isolation protection and data confidentiality. This series include three types of products with different mains input methods and provide 100M copper port, 100M fiber port. It adopts DIN-Rail or wall mounting to meet the requirements of different application scenes.

This series of products conform to CE, FCC certification standards. Hardware adopts fanless, low power consumption, wide temperature and voltage design, which can suit for the scene environment with harsh requirements. It can be widely used in various fields.

Standard & Protocol IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100Base-FX

Copper Port 10/100Base-T(X), RJ45, automatic flow control, full/half duplex mode, MDI/MDI-X autotunning

Fiber Port Standard: 100Base-FX

Connection mode: SC/ST/FC optional

Transmission distance:

l Multimode: 2km

l Single mode: 20/40/60/80/100/120km

Fiber cable:

l Multimode: 50/125μm or 62.5/125μm

l Single mode: 8.3/125μm, 8.7/125μm, 9/125μm or 10/125μm

Transmission wavelength:

l Multimode: 1310nm

l Single mode: 1310nm or 1550nm

LED Indicator Port indicator, power supply indicator

Power Requirement Support three kinds of mains input methods

l External 5VDC, DC round head

l Built-in 220VAC, AC socket with switch

l Built-in 48VDC, 3-pin 5.08mm pitch terminal blocks

Power Consumption 4W

Environmental Limit Operating temperature: -10~60℃

Storage temperature: -20~70℃

Relative humidity: 5%～95%（no condensation）

Physical Characteristic Housing: metal

Installation: wall or DIN-Rail mounting

Dimension (W x H x D): 70.6mm×26mm×94mm (external power supply)

115mm×30mm×173.2mm (built-in power supply)

Certification CE, FCC, RoHS

Warranty 3 years
