Product Name:

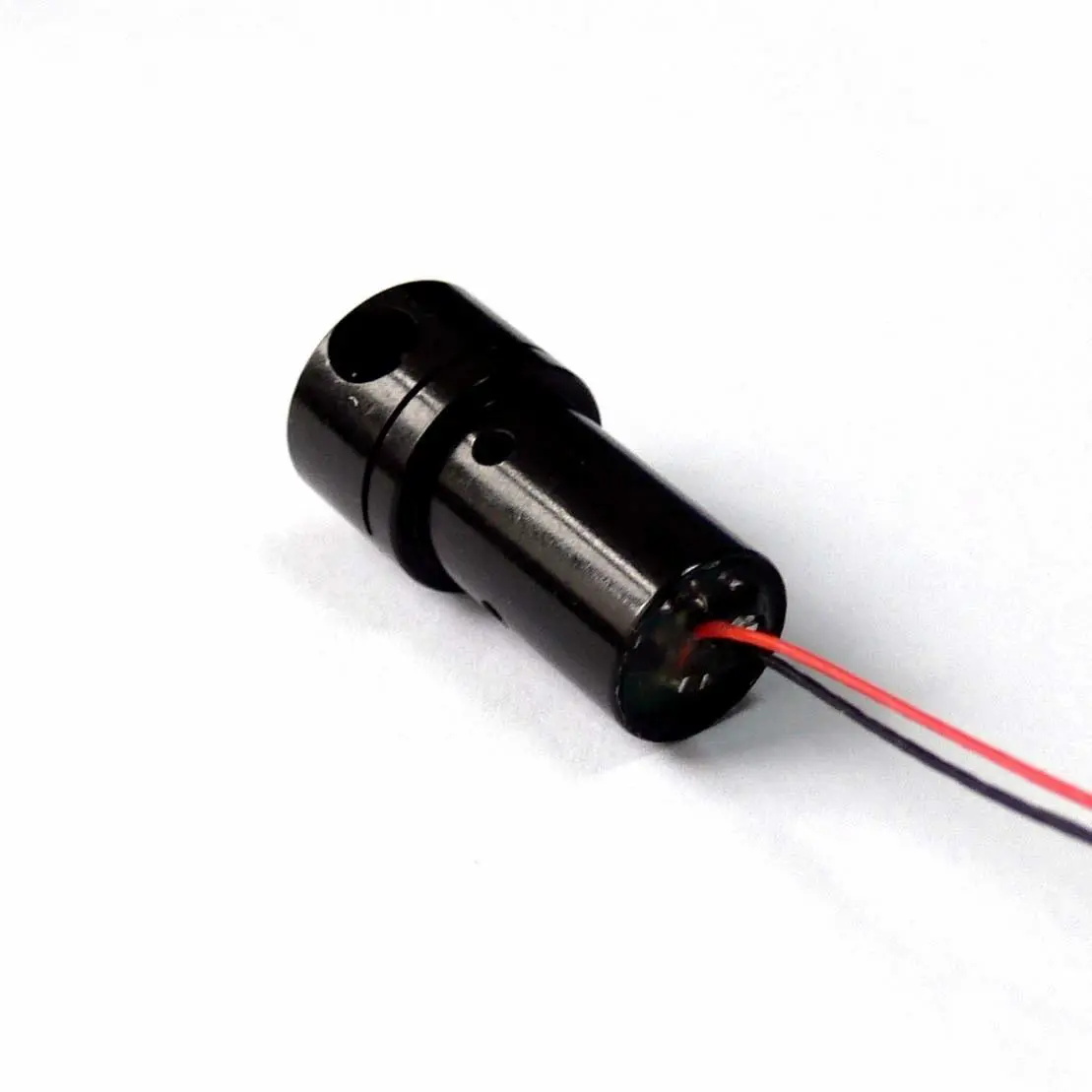

360 Red Alignment line Laser Module

Output Power:

660nm 2.0mW

Fan Angle:

360 Degree

Line Thickness:

≤2.5mm@5m

Dimensions:

φ12x22mm

Model: AM660R100G1

Brand: AIMLASER

Code: 90132000.99

Color: Red

Wavelength: 635nm 650nm

Type: Pulse CW Line TTL

Product Description

AimLaser provides customized 360 Degree Red and Green Line Laser Modules with different output power, line width and dimensions for industrial applications, which uses optical glass lens and input voltage various from 3V to 24V DC or 110VAC.

※ What is a 360 degree Line Laser Generator?

Laser line projector is a great tool for alignment and positioning of opposite sides, fixed points, and process routes.

It is widely used in laser distance measurer, self leveling laser tools, laser survey instrument by projecting a distinct red or green 360 degree laser line for alignment and positioning and surveying to guide the machine operations; therefore, solve the problems of straightness, flatness, parallelism, squareness, and leveling issues.

※ Why use a 360 degree Line Laser Generator?

The laser line generator can replace rulers, stops, measuring aids or templates, which greatly enhanced the processing efficiency, helped to reduce processing costs and increased productivity; therefore, improved industrial competitiveness for traditional industries. You can use both hands for working.

※ 660nm 2.0mW 360 Degree Red Line Laser Generator Descriptions

The AM660R100G1 is a 360 degree red line laser generator for self leveling laser tools, laser alignment tools or laser tape measure equipment. The maximum laser output power is 2.0 mW at 660nm.

AimLaser Line Laser Module Features

Long lifetime

Compact size

Easy mounting

High brightness

Convenient adjustment

High reliability and stability

Wide temperature operation -10℃ to 50℃

※ 360 Degree Line Laser Module Applications

Laser Line Maker

Laser Tape Measurer

Laser Measuring Tools

Laser Alignment Systems

Laser Distance Measurer

Laser Survey Instrument

3D Laser Scanner

Self Leveling Laser Tools etc.

※ Why buy 360 Line Lasers from AimLaser?

Provide One year warranty

Offer customized solutions

Normal sample lead time: within 2 weeks

Conform to ROHS, FDA, IEC, SGS standards

ISO9001:2008 certified laser module manufacturer

Using original Laser Diodes from Arima, Osram, Nicha and branded chips

Laser Module Payment and Shipment

MOQ: 1pc

Delivery time: 3-20 days

Shipment Terms: FOB Xi'an China

Payment Terms: T/T, Western Union, PayPal

Shipment Method: DHL, UPS, FedEx or TNT
