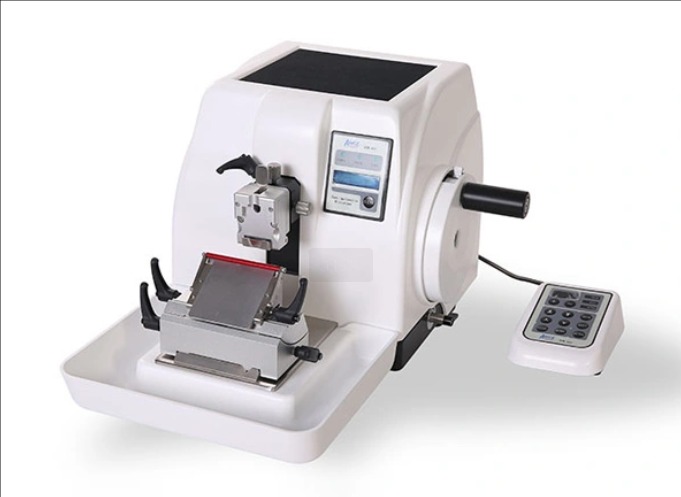

AEM460 Semi-automatic Rotary Microtome with Separate Control Panel

Experience precise histological sectioning with our Semi-automatic Rotary Microtome featuring a separate control panel. Its ergonomic design and intuitive interface enable effortless tissue slicing, ensuring consistent, high-quality results for accurate diagnostics.

Description of AEM460 Semi-Automatic Rotary Microtome with Separate Control Panel

Display monitors a range of functions including section thickness, trimming, section counter.

Separated control panel is easy to operate.

Spacious magnetized section waste tray.

Light balance handwheel with ergonomic concept design.

Specimen Clamp with adjustable function could easily parallel the block and knife on X-Y orientation.

Retraction function effectively avoids the specimen against the blade when it's truing around.

Universal specimen holder fits international standard cassette.

Handwheel locking may be activated at any position to protect specimen and improve safety standard.

Automatic specimen feed memory function improves the trimming speed and quality.

Specification of AEM460 Semi-Automatic Rotary Microtome with Separate Control Panel

Section thickness 0 to 600µm

0 to 2µm, 0.5µm increments

2 to 10µm, 1µm increment

10 to 20µm, 2µm increments

20 to 100µm, 5µm increments

100 to 600µm, 50µm increments

Trimming thickness 0 to 600µm

0 to 2µm, 0.5µm increments

2 to 10µm, 1µm increment

10 to 20µm, 2µm increments

20 to 100µm, 5µm increments

100 to 600µm, 50µm increments

Retraction thickness 5-100µm. 5µm increments (can deactivate)

Specimen horizontal feed 28mm

Specimen vertical feed 70mm

Maximum specimen 40x50x30mm, or standard cassette

Specimen holder adjusted system Horizontal orientation ±8°

Vertical orientation ±8°

Repositioning of knife holder base(Left-right) 50mm

Electric Coarse Feed Speed 300µm/s (Slow) and 900µm/s (Quick)

Dimension Length 575mm

Width 405mm, (without handwheel, 310mm)

Height 325mm

Weight about 35kgs

Power supply 100-240 V AC±10 %

Frequency 50/60 Hz

Power
