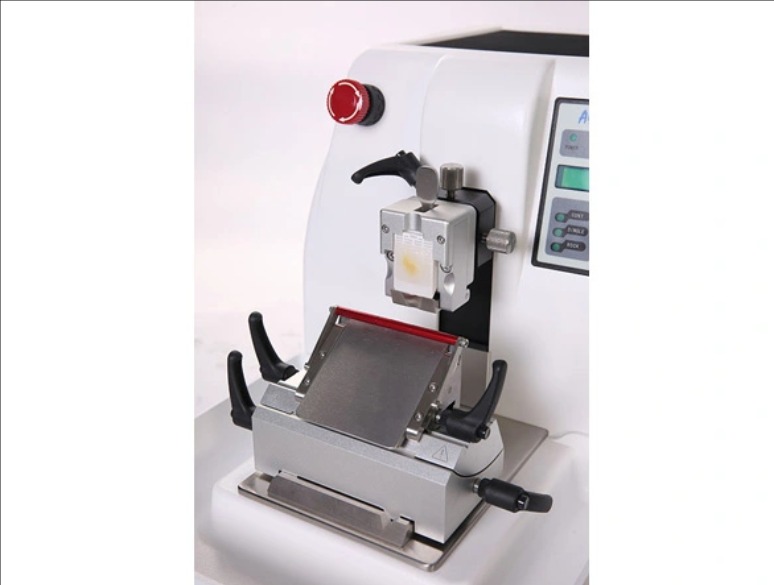

AEM480 Fully-automatic Rotary Electrical Microtome with Separate Control Panel

Revolutionize your lab with our fully automatic rotary microtome featuring a separate control panel. This advanced instrument offers effortless and precise tissue sectioning, enhancing workflow efficiency and ensuring exceptional sample quality for accurate histopathological examinations.

Description of AEM480 Fully Automated Microtome with Separate Control Panel

The casing of microtome is made from fire-resistant ABS palstic with streamlined design.

Spacious and ingenious waste tray.

Advanced retraction function makes better sectioning. The retraction value is also adjustable.

Universal and fast specimen holders fits international embedding cassettes.

Handwheel locking may be activated at any position to improve operation safety.

The electric coarse feed operates two speeds and is easy to record the feed.

Separated control panel is much easier to operate.

Three motorized sectioning modes (Cont, Single and Step) are available for user to select.

Automatic memorized coarse feed and reload function can significantly improve cutting efficiency.

Specification of AEM480 Fully Automatic Rotary Microtome with Separate Control Panel

Section thickness 0 to 600µm

0 to 2µm, 0.5µm increments

2 to 10µm, 1µm increment

10 to 20µm, 2µm increments

20 to 100µm, 5µm increments

100 to 600µm, 50µm increments

Trimming thickness 0 to 600µm

0.5 to 2µm, 0.5µm increments

2 to 10µm, 1µm increment

10 to 20µm, 2µm increments

20 to 100µm, 5µm increments

100 to 600µm, 50µm increments

Retraction thickness 5-100µm, 5µm increments (can deactivate)

Specimen horizontal feed 28mm

Specimen vertical feed 70mm

Maximum specimen 40x50x30mm, or standard cassette

Specimen holder adjusted system Horizontal orientation ±8°

Vertical orientation ±8°

Repositioning of knife holder base, (left-right) 50mm

Electric Coarse Feed Speed 300µm/s (Slow) and 900µm/s (Quick)

Cutting speed 5 grades

1st:100~164mm/s

2nd:164~228mm/s

3rd:228~292mm/s

4th:292~356mm/s

5th:356~420mm/s

Dimension Length 575mm

Width 405mm (without handwheel, 310mm)

Height 325mm

Weight about 37 kgs

As one of histopathology equipment manufacturers, we will provide more types of related products for sale, anything you need, please leave us a message.
