The product is adjusted at the four corners to ensure that it outputs consistently at all points in the specified load plane. Suitable for packaging scales, platform scales, electronic belt scales, batching scales, etc.

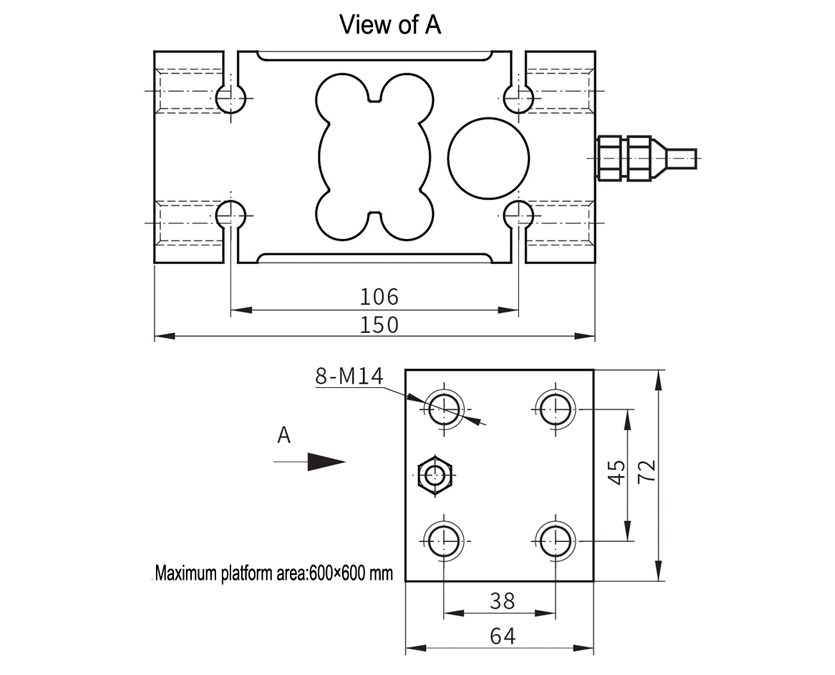

Specifications of TJH-2D Parallel Beam Aluminium Load Cell

Technical parameter

Rated Load 0.5~20 kN

Comprehensive Precision 0.03% FS

Sensitivity 2.0 mV/V

Creep ±0.03% FS/30min

Zero Output ±1% FS

Temperature Effect On Zero ±0.03% FS/10℃

Temperature Effect On Output ±0.03% FS/10℃

Operating Temperature Range -20~+65 ℃

Input Resistance 380±10 Ω

Output Resistance 350± 3 Ω

Insulation Resistance ＞5000 MΩ

Safe Load Limit 150% FS

Bridge Voltage Reference 10V DC

Material Alloy Steel

Load Cell Mode Of Connection Input+: Red

Input-: Black

Output+: Green

Output-: White
