High precision, bidirectional bearing, easy to install. It is suitable for measuring and controlling the force value of batching scale, hook scale, electromechanical scale, packaging scale, material mechanics testing machine and other equipment.

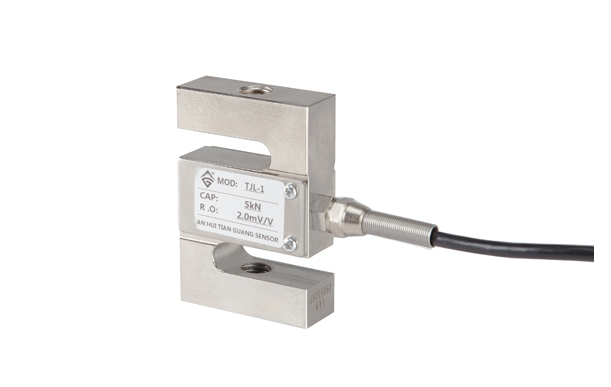

Specifications of TJL-1 Miniature S Beam Load Cell

Technical Parameter

Rated Load 0.05~200 kN

Comprehensive Precision 0.02~0.05% FS

Sensitivity 2.0 mV/V

Creep ±0.02% FS/30min

Zero Output ±1% FS

Temperature Effect On Zero ±0.02% FS/10℃

Temperature Effect On Output ±0.02% FS/10℃

Operating Temperature Range -20~+65 ℃

Input Resistance 380±10 Ω

Output Resistance 350± 3 Ω

Insulation Resistance ＞5000 MΩ

Safe Load Limit 150% FS

Bridge Voltage Reference 10V DC

Material Alloy Steel or Stainless Steel

Load Cell Mode Of Connection Input+: Red

Input-: Black

Output+: Green

Output-: White
