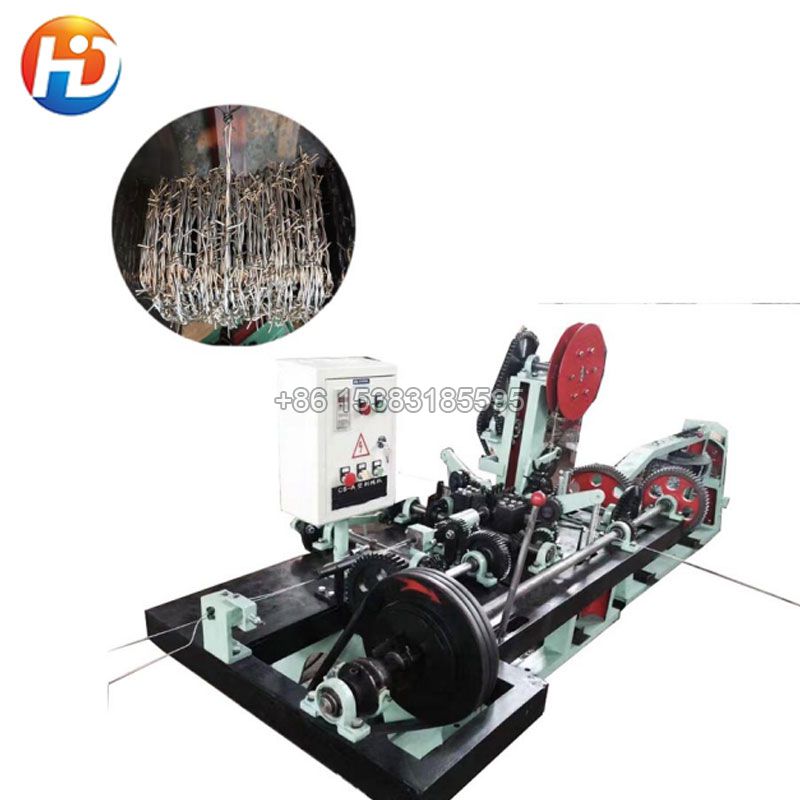

CS Type automatic barbed wire machine

CS Type Barbed Wire Machine

Model Barbed space Single Strand Wire Dia. Barbed Wire Dia.

CS-A

CS-B

CS-C 3", 4", 5", 6" 1.5mm-3.0mm 1.5mm-2.8mm

Model Country of origin Brand Fob Tianjin Delievery Payment terms

CS-A China HaoDi $4500/set Witin 7days 30% advanced payments,others against B/L copy

CS-B China HaoDi $4700/set Witin 7days

CS-C China HaoDi $4700/set Witin 7days

Usage

This automatic barbed wire machine can produce positive and negative twisted barbed wire which is widely used in national defense, military, railway, highway, animal husbandry and other industries.

The materials used for positive and negative twisted barbed wire are usually hot dipped galvanized wire, electric galvanized wire etc.

Positive and negative twisted barbed wire use positive and negative way for winding flowers, the barbed wire products produced has no rebound and winding phenomenon, so it is more beautiful compared with the general barbed wire.

Brand: HAODI ®

CS-A Normal twisted barbed wire machine

Parameter of the wire barbed machine

raw material: hot plated low carbon steel wire, galvanized wire and pvc coated wire

torn distance: 3" 4" 5" or 4" 5" 6"

twist number: 3.5

strand diameter: 1.8-3.0mm

wire diameter: 1.7-2.8mm

theoretical yield: 80-120kg / h

motor: 3 kw

main drive shaft speed: 420r / min

Production:70kg / h

weight: 1000kg

dimension of main part: 1900mm * 1300mm * 980mm

dimension of take-twisting part: 1800mm * 750mm * 750mm

easy damage parts: twist, cutter

In Carton box dimension: 2040mm * 1600mm * 1450mm
