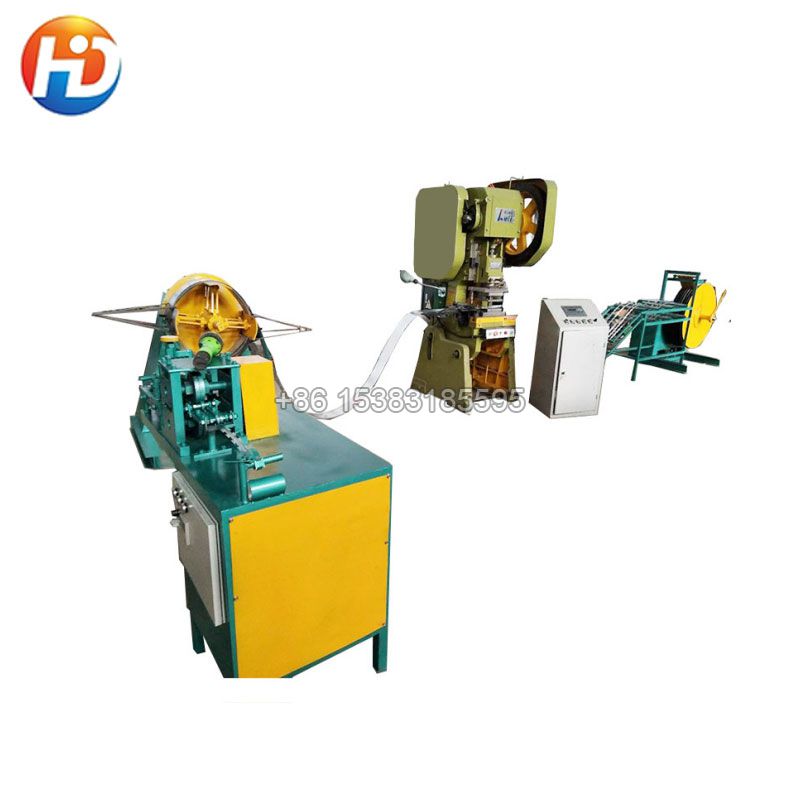

One Set Razor Wire Making Machine include: A and B Two parts.

A: Punching machine part:

It use for cut the steel strip, and make steel strip into razor blade, machine can produce different shapes and sizes strip by changing mold.

B: Forming machine part:

It is used for warp steel wire into razor blade then wind up razor blade wire in coil.

Razor Wire Making Machine Specific Size

Model 5 Strips Punching Machine 9 Strips Punching Machine Coiling Machine

Working Pressure 25T 40T

Voltage 380V/50HZ or as your request

Power 2.2kw 2.2kw 1.5kw

Producing Speed 220-280m / h 220-280m / h 80kg / h

Weight 1500KG 2200KG 300KG

Thickness of Sheet 0.5±0.05(mm) 0.5±0.05(mm) --

Diameter of Wire -- -- 2.5mm

Dimension(mm) 1200 * 1000 * 1900 1100 * 1000 * 2000 100 * 750 * 1200

Raw material GI sheet; Hot dipped galvanized steel sheet; Stainless steel sheet, etc.

Brand: HAODI ®
