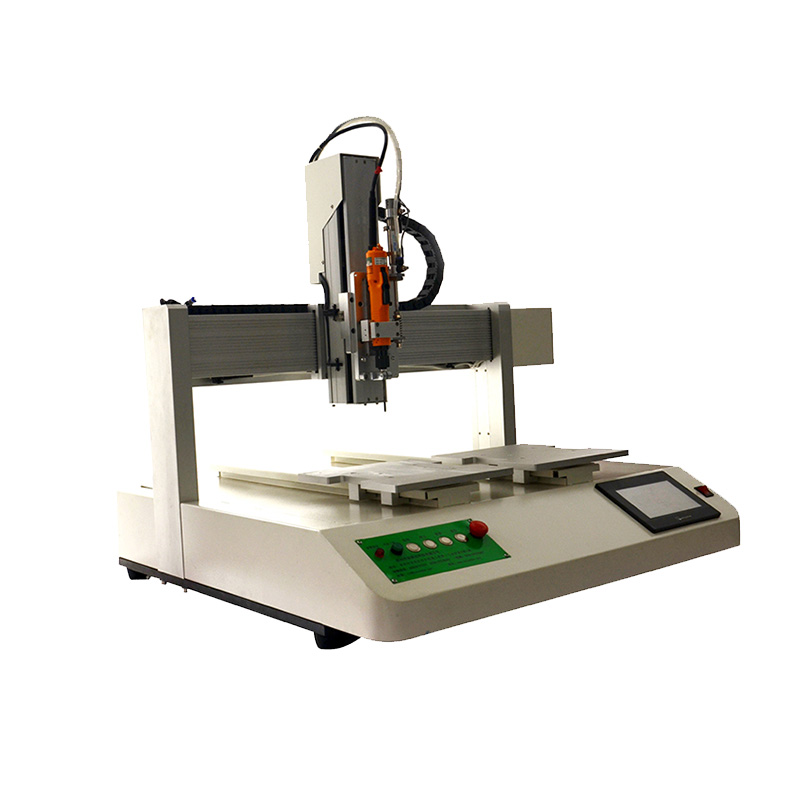

Model No: Double Head Single Y Screwdriver Robot TD304.

Dimension (mm): 600*900*840.

Net Weight: 68KG.

Operation Range: 330*330*120.

Axes: 3 Axis (X, Y, Z).

Move Speed: X,Y 600-800MM/S,Z 400MM/S,R 300°/S.

Repeated Precision: +/-0.02 mm.

Power Supply: AC220V 50HZ OR 110V 60HZ.

Power Source: Electricity + Pneumatic.

Air Pre. Req: 0.4 to 0.6 MPa (4 to 6 kg/cm2) as dry air.

Control Panel: Teach pendant (optional:PC or Touch Screen).

Communication: USB + RS232. Visit Link: https://www.automaticchina.com/products/desktop-4-axis-adsorption-double-head-single-y-automatic-screw-locking-machine-and-screw-tightening-machine/
