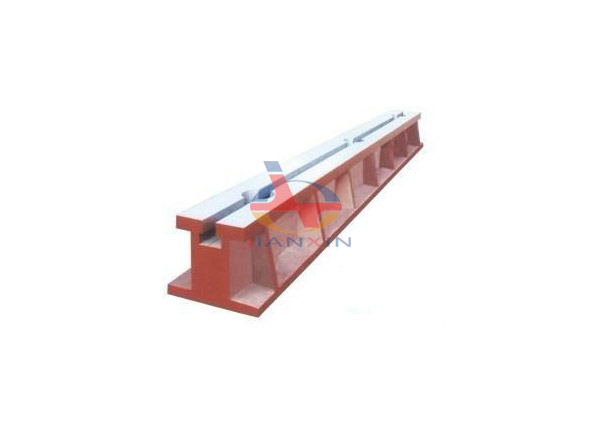

Cast Iron T-slot Floor Guide Rail

High Quality Cast Iron T-Slotted Floor Clamping Rails

cast iron T-slot ground rail

Cast Iron Double T-slot Floor Guide Rail Platform

Cast Iron T-slot Floor Guide Rail Platform

Usage: Cast iron T-slot floor guide rail platforms are evenly disposed according to the fixed point of large-scale equipments, and then join together as a whole ground rail platform. They are mainly used for the assembling, trial, welding and testing of large-scale equipments. They can replace large-scale cast iron surface plates, and save cost, space and cost-effective.

SPECIFICATION:

Material: HT200-300

Specification: 1500-4000mm in length or customize

Surface: T-slots

Hardness of the working surface: HB160-240

Surface treatment: machine processing

Foundry process: sand casting or centrifugal castings

Molding type: resin sand molding

Painting: primer and face painting

Surface coating: pickling oil and plastic-lined or covered with anticorrosion paint

Working temperature: (20±5)℃

Precision grade: 2-3

Packaging: plywood box
