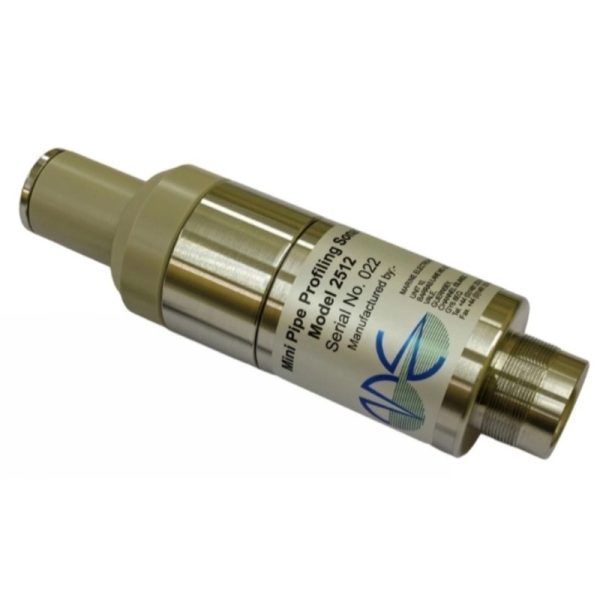

The Mini Pipe Profiling Sonar 2512E delivers compact yet powerful inspection for small full-bore water pipes and boreholes (up to 2 m diameter), without the need for draining or access obstructions. Highlights include:

2 MHz acoustic frequency, 2 m max range

Ultra-fine angular resolution: 0.9°

Supports full 360° scans or variable sector angles

Depth limits: 100 m; conical beam width ~1.8°

ASCII (NMEA-style) output via RS‑232; rugged 316 stainless steel housing

Built-in pitch/roll sensing, Ethernet connectivity, and PC software support

Perfect for internal inspections where access is tight.
