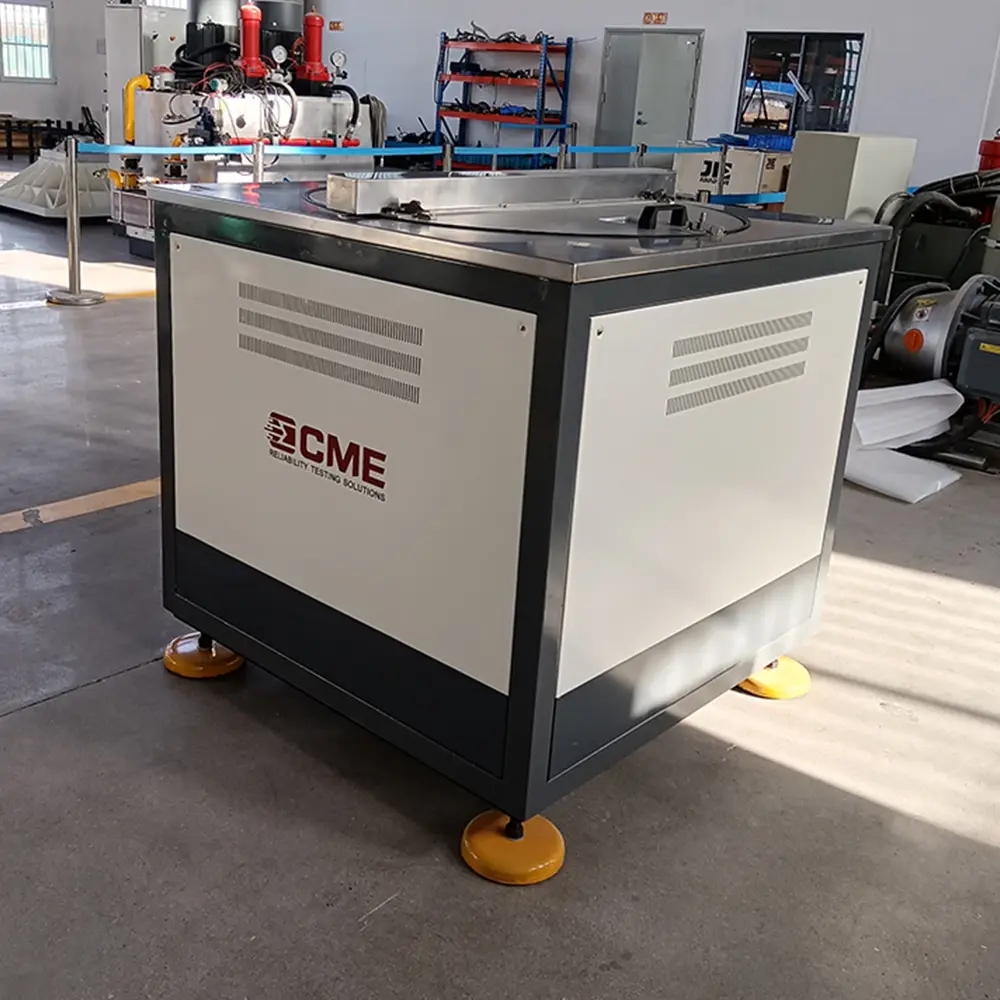

KRD32 series non-standard constant centrifuge acceleration testing machine is a box-type test machine for electronic components, small components, and other electrical and electronic products to simulate dynamic centrifugal motion, dual-environmental force centrifugal motion, and central high-speed rotating motion, spin shock compound motion, centrifugal vibration compound motion. KRD32 acceleration tester is used to assess whether the structural adaptability and performance are good under the force generated by components, small parts, and small complete machines on aircraft, and assess the structural integrity of some components.

FEATURES OF KRD32 NON-STANDARD CONSTANT ACCELERATION TESTER

The rising rate of centrifugal constant acceleration is large

Fully digital network closed-loop remote control, high control accuracy for constant acceleration test

Computer control, with parameter input mode, record, storage, report, and print function

Operation interface of high-precision manual control controller

Complete safety protection functions: Open circuit, overrun, and over-speed protection can be realized

TECHNICAL SPECIFICATIONS OF KRD32 NON-STANDARD CONSTANT ACCELERATION TESTER

Model KRD32-1 KRD32 -2 KRD32- 3 KRD32-4 KRD32.

Parameters Dual-environment constant acceleration tester High-speed spin tester Centrifugal dynami coverload tester Spin shock compound tester Centrifugal vibration compound tester

Max.Load (kg) 5 5 50 3 10000

Max Acceleration (g) 1500 / 20 Shock 10000g--1ms 50g

Loading Rate (g/s) Customized / 10 / Standard Electro-Dynamic Shakers

lnstallation Radius (mm) Customized / 1500 / Customized

Max. Rotating Speed (R/Min) O-3000 0-100000 / O-10000 /

Collector Ring Optional according to user requirements

Control Method Fully closed-loop digital network (remote) automatic control + manual control

Power Supply AC 380V±10%5OHz

Working Environment Temperature range 0~40°C, humidity
