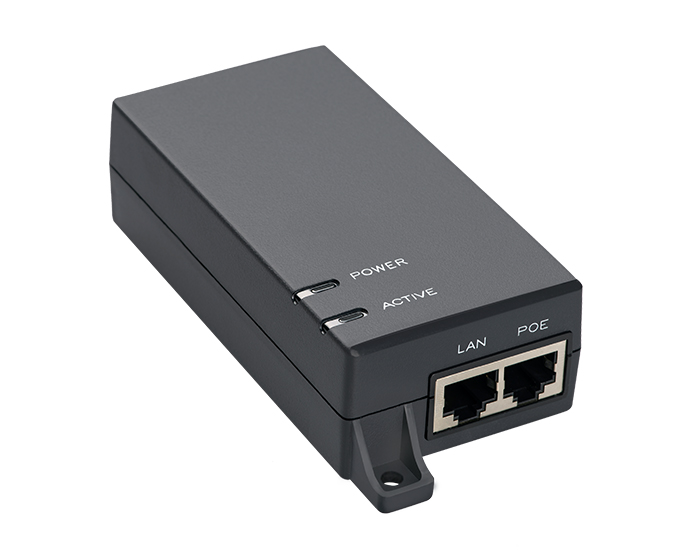

POE Injector For Iot Application PT-PSE100GFN

PT-PSE100GFN is a single port midspan Injector with 2 Pair PoE up to 15.4 watts of power at 48Vdc, 0.32 amp.

PoE Injector manufacturer:Creative Lianjie Network Technology

Designed for the AT powered 15.4W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3at devices.

We provide high quality PoE Injector, outdoor PoE Injector, POE for DIN Rail, dc poe injector and soon.

Enclosed in an IP40 fire retardant plastic case, designed for indoor use installation with Wall-mounted. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.

can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).

We are PoE Injector supplier and more information you can view here

Parameter PoE Injector for door locks Description

Key Features 1. Output: 48Vdc, 320mA, 15.4W

2. Transmission Rate: 10/100/1000Mbps

3. Power Pin: 4/5(+),7/8(-)

Part Number PT-PSE100GFN

Ports   condition LAN Port*1, AC Input   Port*1, PoE Output Port*1

Regulatory   Compliance

 IEEE802.3af

 RoHS Compliance

 WEEE Compliance

Pass Through   Data Rates 10/100/1000 Mbps

Output Pin Assignment and Polarity:

4/5 (+), 7/8 (–)

Output Power Voltage: 48Vdc

User Port Power: 30W Guaranteen

Input Input   Voltage: 100-240Vac

Frequency: 50/60Hz Typ

Working   Environment Operating   Temperature: 0℃ to 40℃

Operating Humidity: 20% to 80%, non-condensation

Storage Temperature: -20℃ to 70℃

Storage Humidity: 10% to 90%, non-condensation

Operating Altitude: up to 2000meters

AC Surge   Protection Line-Earth   1.2/50us (8/20us): 2KV

Line-Line 1.2/50us (8/20us): 1KV

Mechanical   Characteristics Case: plastic

Color: Black

Mounting:Wall-mounted

IP Rated: IP40

Connectors: Shielded RJ-45*2

Size: 135mmX 95mmX 35.4mm

Weight: 400g（0.88lb）

LED Indicator Power   Indicator: Green

PoE Load Indicator: Green

Warranty 2 year

Safety   Approvals CE,   FCC
