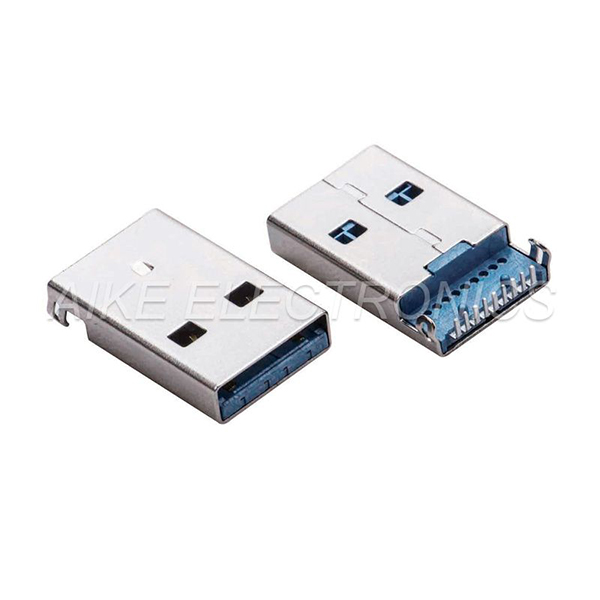

Standard USB 3.0 A Type Male Part，Mount PCB & DIP type with Position posts

Customized USB 3.0 Connectors

USB 3.0 With Cover

Introduction：

USB3.0 A Type, Male Part, Mount PCB, DIP shell and DIP contacts, this part is widely used for mainboard of STB, Desktop, Computure, TV,etc. The speed of Tranferring date can be up to 5GB/Sec. Fully meet USB3.0 Association Standard.

Type USB 3.0 A Type Male Part，DIP  type with Position legs（Sink PCB type).

Materials For housing can be LCP,PA6T,PA9T and so on

For shell can be SPCC, Copper and so on.

Both are depands on custoer request

Colour Blue or Black or Customized Color

Plating For Shell, Ni and Tin Plating

For Contact,Au,Ni,and Tin Plating

Plating Thickness For Shell, 50U',100U' or Higher

For Contact, 1U',3U'5U'15U',30U' or Higher

Both are depands on custoer request

Electronical Current Rated:1.8 Amperes for pin1&pin4.

                       0.25 Amperes other contacts

Rated Voltage:C 100V(RMS)

Contact Resistance:3OmΩ Max for pin1&pin4

                                5OmΩMax for other contacts

Insulation Resistance:100Megohms Min

Machenical Insertion Force:.35N Max

Withdraw Force:10N Min

Application Electromechanical Equipment, Automobile Supporting Equipment, Medical Equipment, Small household appliances equipment, Beauty equipment and Network equipment and other products

Package Tray Package or Tape Reel Or Customized Package

Delivery Time Usually 25-35 days after receiving the 30% deposit

Payment terms TT, L/C, DP or Negotiable

Note This part is only one sample for this serious products, we can change the shell, the legs and even housing to make lots of similar parts. We are so able to produce other standard as per the clients' requirements. Just let us know. We are also Black USB 3.0 Connectors Supplier.
