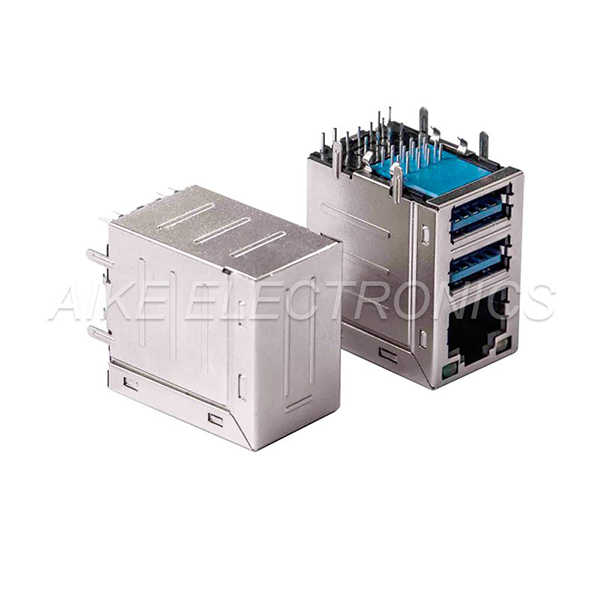

Connector RJ45 female 8P8C,Tab up, DIP TYPE With shell & LED + Double-deck connector USB 3.0 A Type Female,Right Angled, DIP type.

USB3.0 a Type Female

USB 3.0 Dip Type

Both RJ45 connector and Double-deck USB 3.0 Connector are our professional production parts, so Stack Products is our main products, RJ45 8P8C,tab up, DIP Type with shell stack with Double-deck USB3.0 A Type Female, Right Angled, Through holes, DIP type can achieve the signal and data and power function all in one to save space.

Introduction：

Belongs to the connector field, composition structure: plug (connector, crystal head) and socket (module) composition, plug has 8 grooves and 8 contacts.RJ45 is applied to network signal with different designs.

Type Connector RJ45 female 8P8C,Tab up, DIP TYPE With shell & LED + Double-deck connector USB 3.0 A Type Female,Right Angled, DIP type.

Port No. 3 Ports

Materials For housing can be PBT,LCP,PA9Tand so on

For shell normally can be Steel/SPCC/Copper.

Colour White or Black  Customized Color

Plating For Shell, Ni and Tin Plating

For Contact,Au,Ni,and Tin Plating

Plating Thickness For Shell, 50U',100U' or Higher

For Contact, 1U',3U'5U'15U',30U' or Higher

Both are depands on custoer request

Electronical Current Rated:1.50 Amperes for DC

Rated Voltage:AC 125V

Contact Resistance:30m ohm Max (Before Life Test)

                                80m ohm Max (After Life Test)

Insulation Resistance:500M ohms Min

Machenical Insertion Force:.20.6N Max

Withdraw Force:0.98N Min

Application Network Server, Router,Hub, PC terminal, Printer and other equipment

Package Normally Tape & Reel Package Or Customized Package

Delivery Time Usually 25-35 days after receiving the 30% deposit

Payment terms TT, L/C, DP or Negotiable

Note This part is only one sample for this series products, we can change the shell, the legs and even housing to make lots of similar parts. We are so able to produce other standard as per the clients' requirements. Just let us know.
