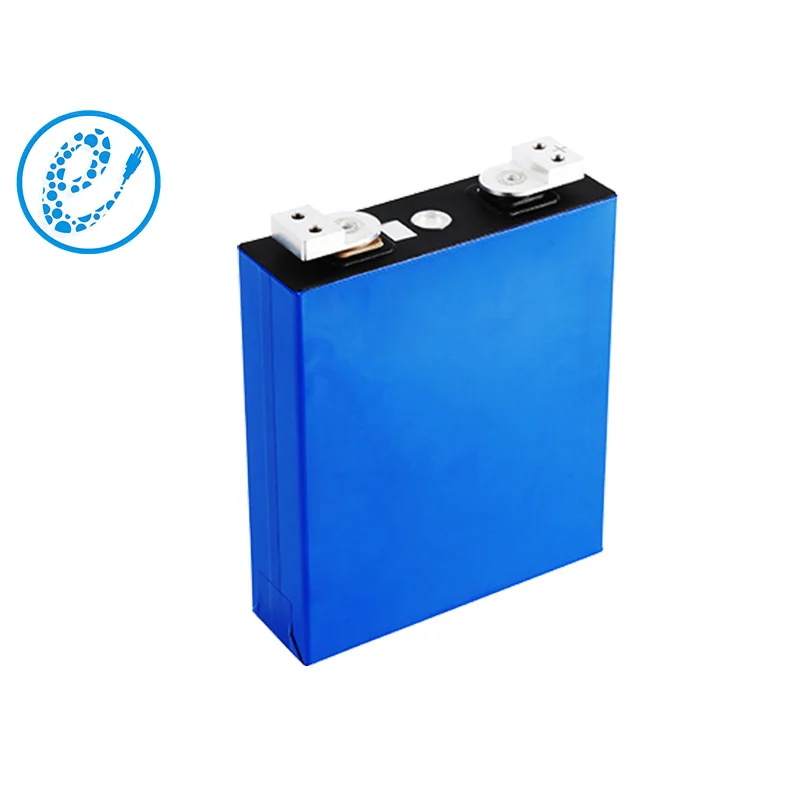

C2-LFP206W/S LiFePO4 is a high-performance lithium iron phosphate (LiFePO4) battery. This type lithium lfp battery offers high energy density, low self-discharge rate, wide temperature range and fast charging ability. It is designed for both stationary and mobile applications, providing reliable power over a wide range of temperatures. The electric excavator lithium ion battery is suitable for a range of applications, including electric vehicles, solar energy storage, and marine applications.

Specification of C2-LFP206W/S 206Ah LiFePO4

Item Specification

Dimension (Welding terminal) 53.8mm *174mm *207.1mm

Dimension (Screw terminal) 53.8mm *174mm *217.1mm

Weight 4±0.2kg

Min. capacity 206Ah (0.5C)@ 25℃

Min. energy 663.22Wh (0.5C)@ 25℃

SOC window 10~90%

Terminal Welding/Screw terminal

Impedance ( 1kHz) ≤0.40mΩ

Voltage Max. 3.65V

Nominal 3.22V

Min. 2.5V（T＞0℃）

2.0V（T≤ 0℃）

Current Standard charging current 68.7A

Standard discharging current 68.7A

Energy density Gravimetric 165Wh/kg

Volumetric 342Wh/L

Temp. Condition Operation (Charge) 0~55℃

Operation (Discharge) -20~55℃

Storage 0~45°C

Self-Discharge Rate Count after fresh cell need Standard Chargeto 50%SOC and storage at 25+2°C for 3 months ≤3%

Cycle Life 0.5C/1C,80% DOD 25℃ 3000 cycles

Abuse test Overcharge, Over-discharge, Short, Heat GB/T 31485-2015

There are many li ion battery manufacturers, but we are one of the best choices for you.
