Package Included:

1pc ECO-WORTHY PV Combiner Box

1pc User Manual

USA/EU/AU/Asia Usually Ships in 5 to 8 Business Days

ECO-WORTHY Pre-wired 6-String Solar Power Combiner with 10 Amp Circuit Breakers and Pre-Installed/Wired Lightning/Surge Protection Module.

Features:

1. 6 string configuration, 10A circuit breakers.

2. Each string continuous duty rated at 250 Vdc.

3. Photovoltaic high-voltage protection.

4. Each string with high-voltage fuses, over-voltage & over-current protection.

5. Lightning arrester for both poles.

6. Anti-backflow diodes, anti-backflow & anti-reverse protection.

7. Circuit breaker output control, short-circuit fault protection, safe and reliable.

8. Protection class IP65 for outdoor installation requirements.

9. Touch-safe circuit breakers & non-conductive box.

10. All UL compliant components used.

11. Includes output cable glands & safety labels.

12. Includes lightning/surge protection module (1000V).

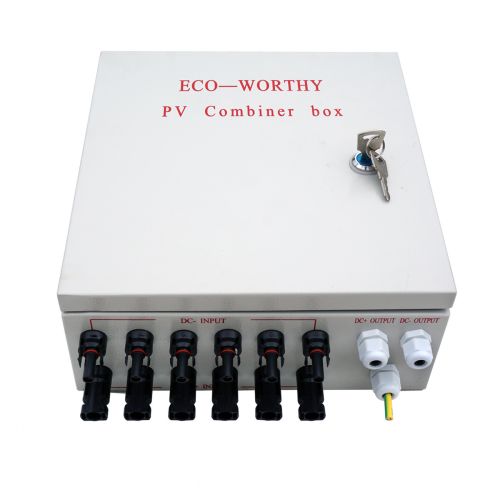

ECO-WORTHY Solar Combiner Box with Circuit Breakers

Specifications

Model ECO—PV6

Input Circuits/Circuit Breakers 6

Circuit Breaker Rating 10A

Max Total DC Output Current 60A

Max Input Voltage Rating 250V

Max Output Voltage Rating 250V

Protection Grade IP65

Operational Environment Temperature -30~+70℃

Relative Humidity 0-95%

Cooling Method Natural Cooling

Surge Lightning Protection Yes

Dimension 260*320*115mm(10.3"x12.6"x4.5")

Weight 5.1kg (11.22lbs)

Applications

First stage convergence for PV arrays, optimize solar system wiring to improve the PV power efficiency.
