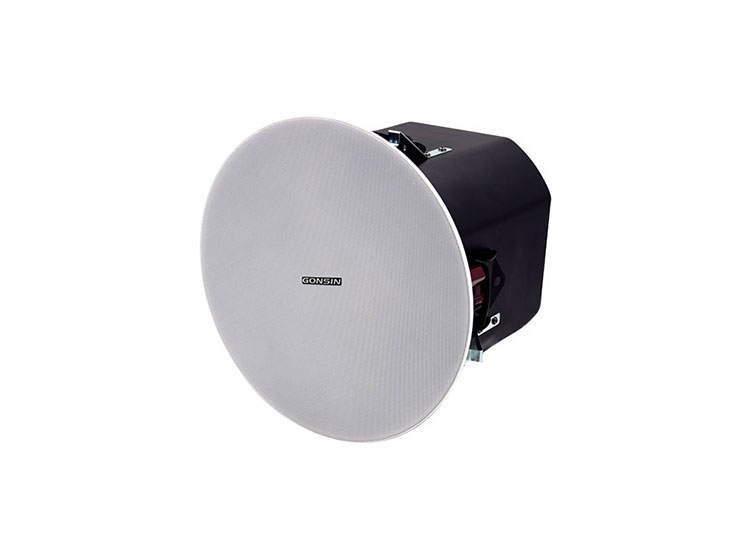

Ceiling Speaker GX-SP1003B/GX-SP1003C

The high-performance ceiling-mounted speaker adopts 6.5 coaxial unit, which has a wider frequency response. It adopts higher hardness metal horn, which can better protect the internal unit. At the same time, the horn structure conforms to the acoustic design, minimizing the formation of standing waves and making the sound reproduction effect clearer and purer. The installation bracket is attached, and the phoenix interface connection is used at the same time, which makes the project installation very simple. The simple design makes it better integrated into the venue. In general, it adopts a multi-point dispersion sound reinforcement method with multiple acoustic audio ceiling speakers in a venue, which can ensure a uniform sound field and enhance the proportion of direct sound.

Features of Ceiling Speaker GX-SP1003B/GX-SP1003C

6.5”coaxiing driver

Metal horn structure design

4P phoenix contact

With installation stand

Technical Specifications of Ceiling Speaker GX-SP1003B/GX-SP1003C

Product GX-SP1003B GX-SP1003C

Types Passive coaxial ceiling speaker

Unit composition Bass: 1×8 inches Bass: 1×6.5 inches

Tweeter: 1×1 inches Tweeter: 1×3/4 inches

Frequency response 50Hz-20kHz 100Hz-20kHz

Sensitivity (1W/1m) 92dB 88dB±3dB

Rated power/peak power 80W/160W 40W/100W

Maximum/peak sound pressure level 94±3dB 92dB

Rated impedance 8Ω/100V/70V 16Ω

Covering angle (H×V) 90°×90°

Connection socket 1×Phoenix

Size (D×H) Φ320×H245mm (without stand) Φ252×H171mm (without stand)

Package Size 800×410×380mm ? 2PCS? 710×310×252mm? 2PCS?

Hole Size 292mm (board thickness 225mm (board thickness greater

greater than 10mm) than 10mm), space height>200mm

Net weight 5.2kg 2.6kg

Package color White

Hanging/installation device - Ceiling speaker stand

Applications of Ceiling Speaker GX-SP1003B/GX-SP1003C

Conference room

Multifunctional hall

Exhibition Center
