Model: YEV-300 YEV-600 YEV-1000 YEV-2000 YEV-3000

Main Parameters:

Force:300kgf / 600kgf / 1000kgf / 2000kgf / 3000kgf

Max acceleration: 100g(without load)

Max displacement: 51mm

Max speed: 1.6/1.8/2 m per minute

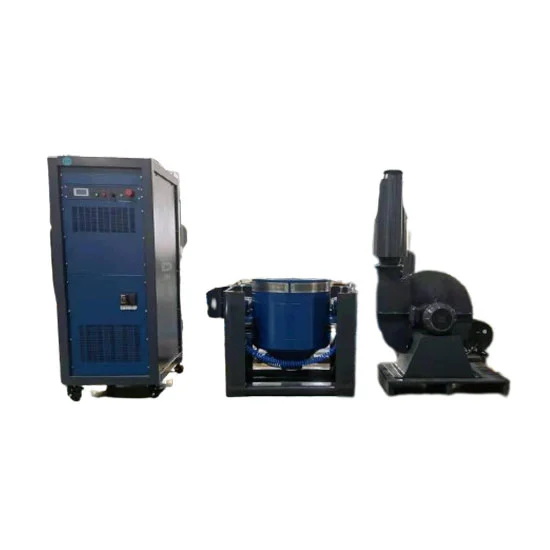

Description of high frequency vibration testing Machine

Electromagnetic high-frequency shakers are used to simulate vibration conditions for structural analysis and testing assemblies to assure the ruggedness and reliability of the products to withstand the vibration exposure of a life cycle.

The electromagnetic vibration test machine is widely used in national defense, aviation, aerospace, communications, electronics, automotive, home appliances, and other industries.

Here is the formula and drawing of Yuanyao electromagnetic high frequency vibration test machine.

Formula: A(g)=(2πf)2Dcm/980≒A=0.002DmmF2    D=A/0.002F2      F=M(kg) ×A(g)

Yuanyao is a professional manufacturer and supplier of electromagnetic vibration test machines in China. With years of experience in the industry, we offer high-quality vibration testing equipment at competitive prices.

Our range of electromagnetic vibration test machines is designed to meet various testing needs for different industries, including electronics, aerospace, automotive, and more. These machines can simulate real-world vibration conditions, allowing users to test the durability and reliability of their products under extreme conditions.

If you're in the market for an electromagnetic vibration test machine or other testing equipment, Yuanyao is a great place to start. Our products are reliable, durable, and priced competitively. Whether you're looking for a basic model or a more advanced one with additional features, we have a variety of options to choose from.

Don't hesitate to make inquiries or contact Yuanyao directly for more information about our electromagnetic testing equipment and vibration test machine price / vibration testing machine price. With our dedication to quality and customer satisfaction, we are a trusted supplier in the industry.

Parameter of High-Frequency Electromagnetic Vibration Test Machine

Model YEV-300 YEV-600 YEV-1000

Rate sine force(N) 2940 5880 9800

Radom force(N) 2940 5880 9800

Shock force(BMX) 5880 11760 19600

Frequency(Hz) 5-4500 5-3000 5-3000

Max acceleration without load (m/s2) 980 980 1176

Rated speed(m/s) 1.6 1.8 2

Max.displacement(MMF-p) 25 25 51

Weight of moving parts(kg) 2.7 5.5 8.4

Max load(kg) 120 200 120

Consumption power(KVA) 4 9.7 20

Power requirements 3φ380V, 50Hz

Vibration controller(optional) YEVC-2,YEVC-3,REVC-2,REVC-3

Cooling way Air cooling

Continuous working time 8 h

Protective function Grid overvoltage protection

Module overheat protection

System default protection

Grid Undervoltage protection

Output overcurrent protection

Output overvoltage protection

Substrate overheat protection

Module overcurrent protection

Leakage protection

Features of High-Frequency Electromagnetic Vibration Test Machine

The base of the machine is made from high-quality material, easy to install and run smoothly.

Multi-function: frequency modulation, frequency sweeping,programmable, amp;otude modulation, time control,etc.

Strong anti-magnetic and anti-interference ability.
