The integrated DWDM/CWDM platform of OTNS8600 Ⅰ type optical transmission network system is mainly used in the metro area access layer network, and it can complete the function such as optical fiber saving, service multiplexing, and distance extension, solve the shortage of fiber resources in the access layer network, provide clients an access solution of broadband multiple service access with low cost, multiple service access, and high efficiency.

OTNS8600 Ⅰ can cooperate with other Sintai Communication OTNS series products and implement networking according to the different requirements.

Product Features

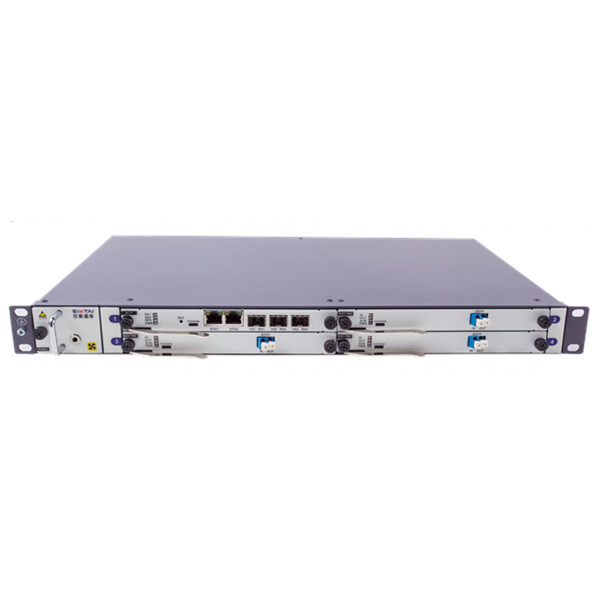

The standard 1U rack type design fully adopts the way of outlet on the front panel, provides 3 service single-board slots, 1 network management single-board integrated with service slot, 1 fan single-board slot, and 2 power single-board slots, which are all pluggable.

It supports the WDM for all types of service with the rate of 100Mbit/s~400Gbit/s and meets the requirements of multiple service access.

It supports CWDM and DWDM, and the board is available for both coarse wavelength and dense wavelength.

It supports the access of up to 1*400G bidirectional services on a single piece of equipment, and the expansion of transmission capacity is available through the equipment stack.

It supports the transmission of multiple distance and service with the configuration of optical amplification and dispersion compensation to implement longer-distance transmission.

It supports application scenes of single fiber uni-direction, single fiber bi-direction, and dual-fiber bi-direction.

It supports a unified network management platform and provides a perfect performance monitoring ability in the performance of networks and equipment.

It supports the power supply of 110V/220V AC or -48V DC, with a 1+1 power input protection.

It supports deployment in various locations such as cabinets, outdoor cabinets, desktops, hanging walls, and derricks.

It supports free-of-configuration installation, and the equipment is plug-and-play.

It adopts a green energy-saving design, with a typical configuration of 50W/120W optional power consumption.

Product Specification

Function Note

Product model OTNS8600 IB OTNS8600 IF

Equipment size (H x W x D, mm) 1U: (back-power supply) 1U: (front -power supply)

44×442×280 44×442×220

Service slot 4 slots 4 slots

Power consumption 120W (Max) 50W (Max)

Max channel number CWDM: 18CH, DWDM: 96CH (50GHz) / 64CH(75GHz)

Single channel max rate 400Gbit/s

Line side rate 1.25Gbit/s, 2.5Gbit/s, 8Gbit/s, 10Gbit/s, 16Gbit/s, 25Gbit/s, 40Gbit/s, 100Gbit/s, 200Gbit/s, 400Gbit/s

Support service STM-1/4/16/64/256、OC-3/12/48/192/768

OTU-1/2/3/4

FE/GE/10GE/25GE/40GE/100GE

FC 1G/2G/4G/8G/16G/32G

EPON, GPON, CPRI 1/2/3/6/7/10, eCPRI

Clock features Support IEEE 1588V2

Network topology Point to point, chain type, star type, ring type

Network level protection Optical channel 1+1 protection, optical multiplex 1+1 protection, optical line 1+1 protection

Equipment level protection Power supply backup

Network management SNMP, Web, CLI, Telnet

Installation "19 cabinets, ETSI 300mm/600mm cabinets

Wireless outdoor base station cabinet, FTTX outdoor cabinet, hanging wall

Working temperature range -10℃～60℃

Working humidity range 5~95% no condensation

Storage temperature range -40℃～85℃

Heat dissipation Fan cooling

Power supply mode AC: 90 ~ 260V or DC: -36 ~ -72 V
