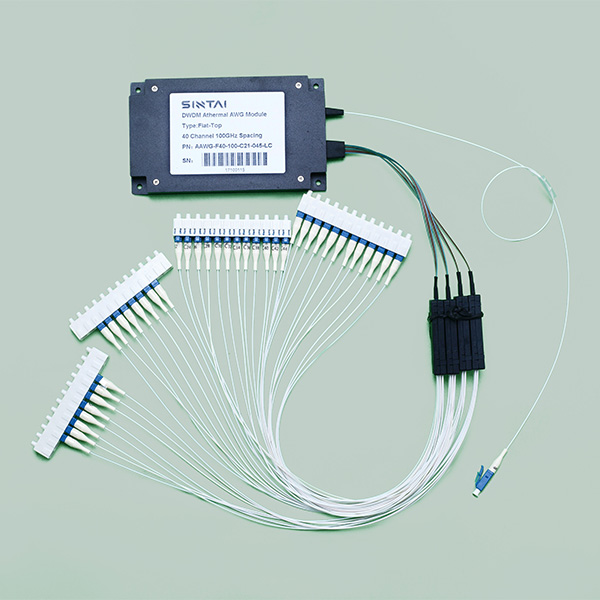

The athermal Array Waveguide Grating Module (AWG) from Sintai is based on waveguide grating technology on the silicon substrates and adopts the unique thermal-free package design, which is a completely passive DWDM solution without power, software, or temperature control.

Accurate channel coupling, low insertion loss, high channel isolation, and high stability can be achieved. Each module has multiplexing and de-multiplexing functions and is one of the most important devices in the DWDM system.

Athermal AWG Module Feature

Low insertion loss

High channel isolation

High stability and reliability

Low polarization dependent loss

Multi-channel number

Athermal AWG Module Specification

Parameter Unit characteristic

Gauss Flat top

ITU GHz ±12.5

Channel Spacing nm 0.8nm(100GHz)

Channel Number 40、48or customers specified

Wavelength accuracy nm ≤0.05

Channel Insertion Loss dB ≤5.0 ≤5.5

-1dB Bandwidth nm ≤0.2 ≤0.34

-3dB Bandwidth nm ≤0.4 ≤0.51

Adjacent Channel Isolation dB ≥25

Non-Adjacent Channel Isolation dB ≥30

Total isolation dB ≥22 ≥23

Channel Ripple dB ≤1.5

Return Loss dB ≥45

Directivity dB ≥50

PDL dB ≤0.5

PMD ps ≤0.5

Power Handling mW ≤300

Operating Temperature °C -10~+70

Storage Temperature °C -40 ~+85

Fiber Type - Corning SMF-28e Ultra

Package Size mm 120x70x12
