Semi-Automatic C/Z Purlin Machine for Sale uses the same set of equipment to produce various specifications of C/Z purlin through semi-automatic simple stepless adjustment, without changing the forming rollers when changing specifications. If want to change C to Z(Z to C), need to change the rollers position manually. The production process adopts automatic control mode, which can automatically punch, cut and form according to the parameters of the purlin length, vertical hole distance and number entered.

Features and Advantages of Semi-Auto C/Z Purlin Roll Forming Machine for Sale

Automatic multi-size adjusting can be finished quickly on the PLC screen.

C & Z profile changeover job can be finished very easily and quickly with the help of the C/Z changeable device.

Just need to switch the specific stations tooling to a different position, thus it can produce both C and Z purline.

Forming speed: 30m/min; Production speed 15m/min

It saves much cost than a full automatic C/Z exchangeable line but can realize all functions.

Certified with Multi-Patents; CE Certified, EUROPEAN quality standard

Most of the hot & popular profiles models, we have ready machines in stock for prompt delivery.

Suitable Coil Sheet Material for Semi-Auto C/Z Purlin Roll Forming Machine

Suitable material: Cold/hot Rolled Steel, Galvanized Steel

Thickness: 1.6-3.2(mm)

Yield Strength:  230-300 (MPa)

Width:  as profile requests

Production line Components and Parameters of Semi-Auto C/Z Purlin Roll Forming Machine

1. Decoiler-leveler integrated unit  3t/5t automatic

2. Servo Feeding unit

3. hole punching unit

4. Pre-cutting to length

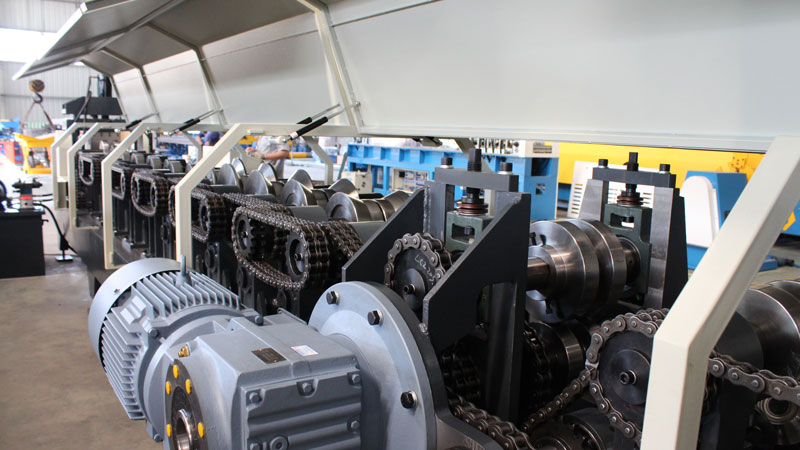

5. Roll forming system         20-30m/min

6. Safety cage               optional

7. Output System             Automatic Stacker

Stackmaster (Output direction) Lateral/Longitudinal (optional)

8. Hydraulic system Power supply for pre-cutting and hole punching system

9. Electric control system MITSUBISH

Specification of Semi-Auto C/Z Purlin Roll Forming Machine

Machine Condition Fully New, A Grade quality

Panel Shape As profile drawing and customer’s requirements

Operator needed 1-2 persons

Power Supply 220V/380V/415V/460V, 50/60Hz, 3P (as requests)

Equipment Weight About25t

Dimension (L*W*H) about 45*3*2m

LOADING SIZE Normally need 2x 40' container.

Equipment Color Normally Blue/White, or as requests;

Place of Origin Zhejiang, China (Mainland)

Packing Standard and careful export packing

Semi-Auto C/Z Purlin Roll Forming Machine Working Flow

C/U/Z/M Profile Drawings

Installation of C/Z Purline

Semi-Auto C/Z Purline Roll Forming Machine Application

Finished Panels Processed by Semi-Auto C/Z Purlin Roll Forming Machine

Panels Processed
