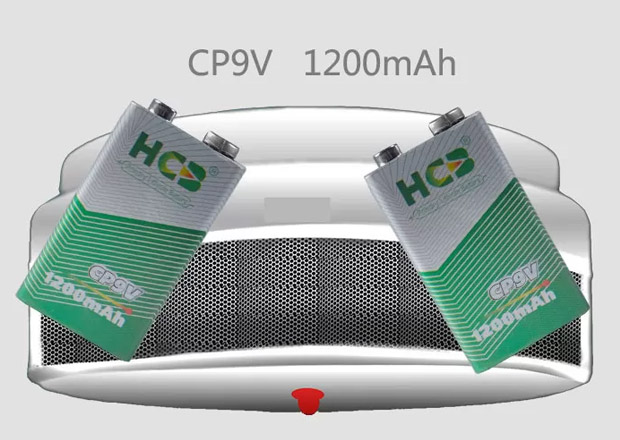

450Wh/Kg CP9V 3CP502440 1200mAh Soft Cell Non-Rechargeable Lithium Batteries For Smoke Detectors, RFID Devices Smoke Alarm Security, Smart Metering, Medical Devices, GPS Tracking.

Details of CP9V Lithium Pouch Cell

Product Details of CP9V Lithium Pouch Cell

Place of Origin China

Brand Name HCB

Certification RoHS/UN/CE/UL

Model Number CP9V

Payment & Shipping Terms Details of CP9V Lithium Pouch Cell

Minimum Order Quantity 1K pcs

Price negotiable

Packaging Details Special design for Air/Sea/Courier transportation

Delivery Time 10 - 35 workdays

Payment Terms T/T, L/C

Supply Ability two million units per month

Advantage of CP9V Lithium Pouch Cell

High voltage response, stable during most of the lifetime of the application

Energy density up to 830Wh/L

Wide operating temperature range (-40℃~+70℃)

Low self-discharge rate (less than 1% per year after 1 year of storage at +25℃)

Specification of CP9V Lithium Pouch Cell

References Data Electrical characteristics

Open circuit voltage (at 23±2°C) ≥9.30V

Nominal capacity 1200mAh

(At +25°C, the battery is discharged at continuous current 1mA until the voltage reaches cut-off voltage 6.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.)

Maximum continuous current 300mA

(At +25°C, 6.0V cut-off, battery discharged for a minimum of 50% of rated capacity.)

Maximum pulse discharge current 500mA

(At +25°C, 6.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell’s previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB. )

Storage (recommended) ≤+30°C

(For more severe conditions, consult HCB) ≤75%RH

Operating temperature range -40°C~+70°C

(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses. Consult HCB.)

Physical characteristics Typical weight 39.0g

Li metal content 1.52g

Use Warning of CP9V Lithium Pouch Cell

Do not charge. When this battery is charged, gas is generated inside and raises internal pressure, resulting in fire, heat generation, leakage, or bursting.

Do not dispose of in fire, disassemble or heat in any way. It will damage the insulation materials and the safety vent resulting in fire, heat generation, leakage, or bursting.
