Double and Half Layer Polyester Forming Fabrics

Paper Machine Plain Fabric

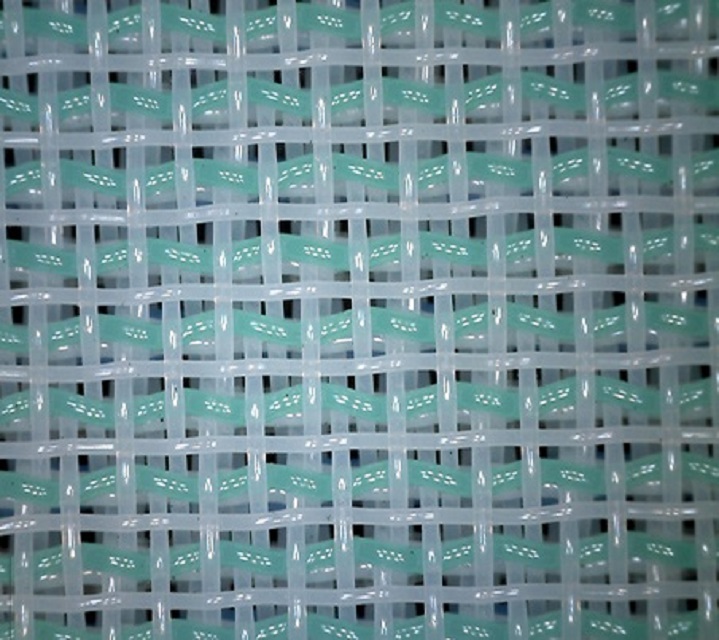

To improve the Double layer design, companies may also consider the 2.5 Layer Forming Fabric. This fabric type is an improved version of the double layer design where the weft density of the sheet side is increased. As the weft increases, the paper’s surface properties improve as well as retention and wire mark. There are different shed layer however the 8-shed and the 16-shed has the greatest potentials.

Example of Application:

§ Newsprint

§ Offset printing paper

§ Cigarette paper

§ Toilet paper

§ Copperplate paper

The 2.5 layer also has higher fabric support and longer life span due to the increase in the water yarn diameter and the long CD crimp. This fabric would best work for medium up to high-speed paper machine.

Heat resistance polyester forming fabric is an improved version of the double layer design where the weft density of the sheet side is increased.

16-shed two and a half layer fabric 365016 0.28 0.20,0.27/0.50,0.50 37-38 31-32 ≥1200 8500±500

424516 0.25 0.20,0.25/0.45,0.45 48-49 42-43 ≥1250 8000±500

562516 0.18 0.13,0.18/0.25,0.25 57-58 46-47 ≥1500 6500±500

563516 0.20 0.13,0.25/0.35,0.35 56-57 61-62 ≥1500 7000±500

602516 0.18 0.13,0.20/0.25,0.25 62-63 55-56 ≥1500 6200±500

603516 0.20 0.13,0.25/0.35,0.35 61-62 52-53 ≥1500 6300±500
