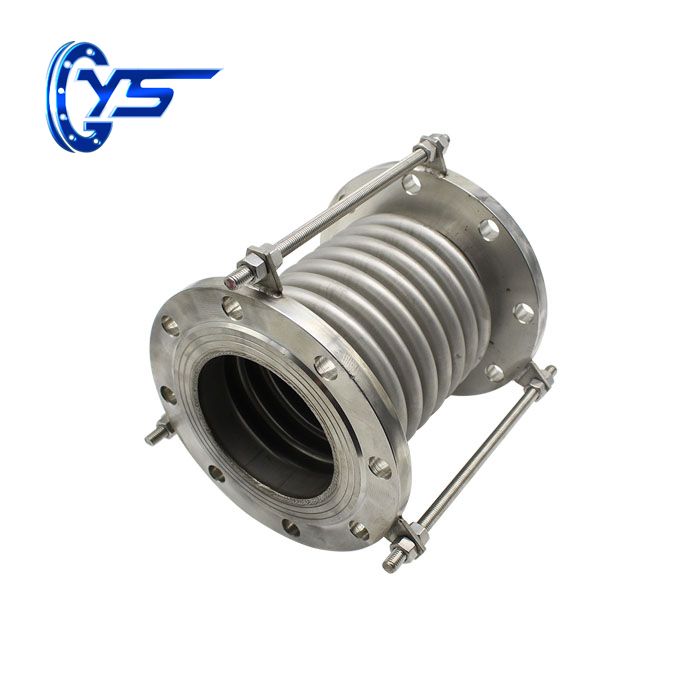

JDZ type axial internal pressure corrugated compensator Strainer Valve Manufacturers

Medium: water, oil, steam

Caliber: DN32-2800

Pressure: 1.0-2.5mpa

Flange material: carbon steel stainless steel

Connection method: flange

HBYS Valve Details

JDZ type axial internal pressure corrugated compensator Material of main parts

Part Name material

Flange Carbon steel, stainless steel

Bellows stainless steel

Application: It is mainly used for the connection of metal pipes that transport liquid, gas and other materials.

JDZ type axial internal pressure corrugated compensator dimensions and connection

model Nominal diameter

(mm) Wave number L Maximum outer diameter size Pressure rating MPa

1 1.6 2.5

Amount of axial compensation mm f9ⅡN / ram

JDZ type axial internal pressure corrugated compensator 32 8 110 110 20/26 18/63 15/98

40 8 130 130 20/44 18/89 15/106

50 8 150 150 20/70 18/70 15/138

65 8 170 170 26/44 22/55 19/68

80 8 200 200 34/33 28/41 24/54

100 8 220 220 40/75 35/93 29/117

125 8 240 290 66/36 58/45 50/56

150 8 250 290 64/51 54/59 46/65

200 8 280 340 59/52 53/58 48/78

250 6 280 300 59/42 52/45 47/55

8 340 360 87/35 79/39 71/47

300 6 330 340 59/59 5265 47/71

8 380 400 87/37 79/41 71/45

350 6 360 340 59/67 52/74 47/81

8 420 420 87/44 79/48 71/47

400 6 360 340 59/62 52/68 47/75

8 420 420 87/43 79/47 71/52

450 6 360 340 87/37 79/41 71/45

8 460 450 131/23 118/25 106/28

500 6 450 340 87/68 79/75 71/82

8 520 450 131/39 118/43 106/48

600 6 480 380 87/85 79/94 71/103

8 560 500 131/49 118/53 106/60

Our Flange Ball Valve’s materials mainly include WCB cast iron stainless steel, etc. GOST, JIS, DIN, BS, ANSI gate valve, ball valve, globe valve, butterfly valve are all our main product.
