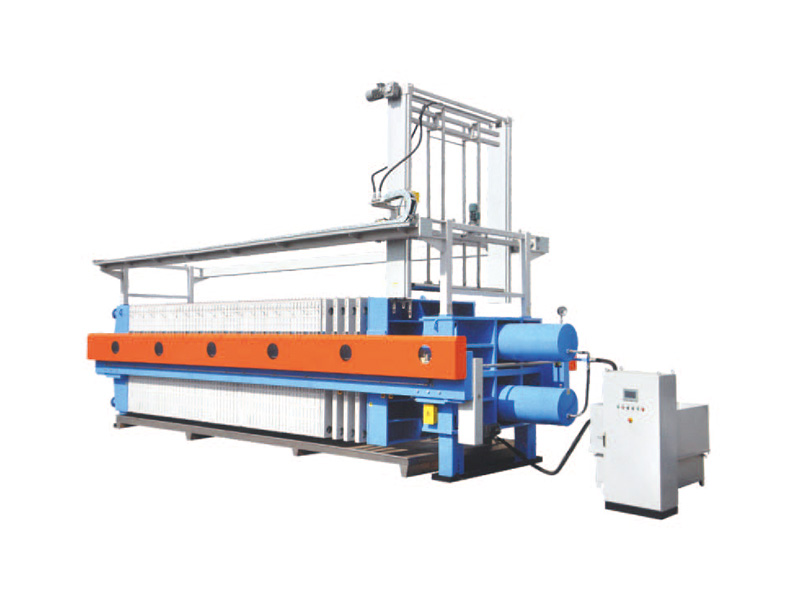

Filter Press with Automatic Filter Cloth Cleaning

Filter press with automatic filter cloth cleaning realized the automatic pulling filter plate and cleaning filter cloth, Automatic Cloth Washing Filter Press solved the problem of difficulty in cleaning filter cloth, frequently changing the filter cloth, etc., Automatic filter press also saving labor and water resources, shortening the washing time, and making the filter cloth more permeable, so as that increase the filtration speed and extends the service life of filter cloth.

Model Filtering area Filter plate size Filter cake thickness Filter chamber volume Filter plate quantity Motor power Pressure Machine weight Boundary dimension Foundation size

mm

m2 mm mm L pcs kw Mpa kg mm L B D H C

XAMZ10/630-30U 10 700*700

            30 154 12

2.2

0.8 1880 2540*980*1130 1670

400

1200

780

495

XAMZ15/630-30U 15 226 18 2080 2840*980*1130 1970

XAMZ20/630-30U 20 298 24 2280 3140*980*1130 2270

XAMZ25/630-30U 25 375 31 2500 3490*980*1130 2620

XAMZ30/630-30U 30 452 37 2700 3790*980*1130 2920

XAMZ40/630-30U 40 595 49 3100 4390*980*1130 3520
