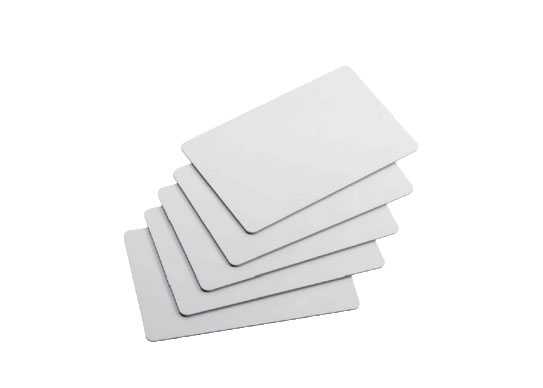

XCTF-8200A-C13 Smart Interface Card

The Invengo XCTF-8200A-C13 UHF card is a passive UHF(RAlN RFID) smart card designed for superior read/write performance. The smart UHF card is EPCglobal Class 1 Gen 2 V2 and lS0 18000-63 compliant, combining Invengo's advanced antenna design and Impinj Monza 5 chip. Invengo's smartcard operates worldwide within any RAlN RFID(UHF) band and offers an exceptional long reading range up to 9 meters or 30 feet.

Main Features of XCTF-8200A-C13 UHF Card

High performance transponder for a wide range of applications

Operating Frequency 840 to 960 Mhz

Superior read/write sensitivity

100% performance tested

SPECIFICATIONS OF XCTF-8200A-C13 UHF CARD

RFID Protocols Supported EPCglobal Class 1 Gen 2,ISO 18000-63

Integrated Circuit (Ic) lmpinj Monza 5

operating Frequency 840 to 960 MHz

EPC Size 128 bits

TlD 48 bits serialized TID

Environmental 0perating Temperature -40C to 85C (-40F to 185F)

Shelf Life Minimum 2 years from date of manufacturing in 20℃ (68F)@50% RH

Bending Diameter >50 mm, tension max 10 N

Static Pressure
