D114011-X929011 G3 PLCl Meter

Brief Introduction

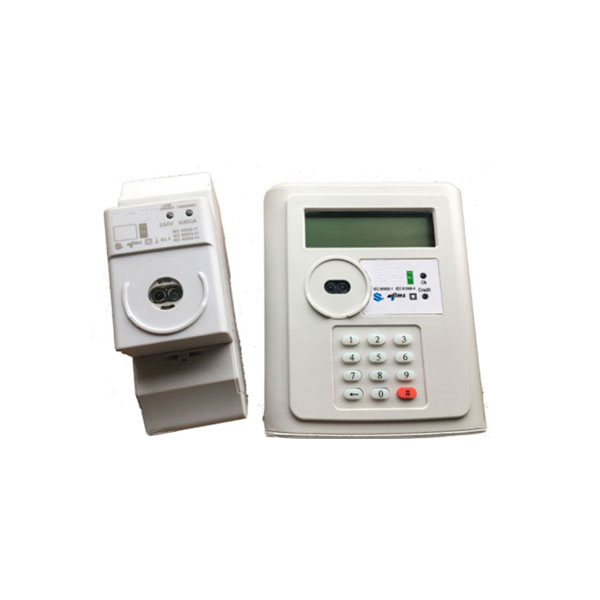

D114011-X929011 is a single phase two wire Din rail prepaid meter with G3 PLC communication and built-in relay, it can be used with keypad IHD (optional).

1P Din Rail Meter Technical Parameter

Part number D114011 - X9029011

Ref. current 5(80)A

Impulse constant 1000imp/kWh

LCD display W/O

Operation temp. -20~+70℃

Storage temp. /

Relative humidity ≤95%

Ref. frequency 50Hz

Accuracy class Cl.1

Starting current 0.004OIb

Flashing red Impulse indication,width = 80ms±20ms

Power consumption ≤ 2W,
