NB-IOT Meter

1. Introduction

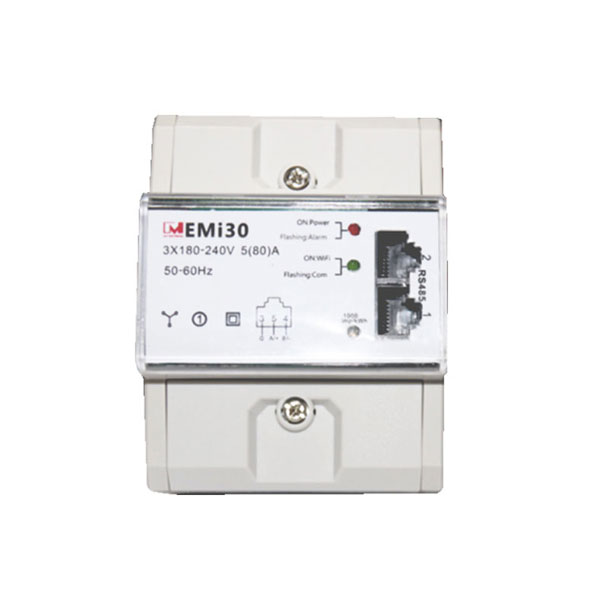

EMi30S.1G-W is a three phases four wires intelligent sensor device with WIFI、RS485 communication, which integrates functions such as information collection, real -time monitoring, analysis prediction, security alarm, energy consumption monitoring, and remote management and control.IOT WIFI Din Rail Meter is widely used in various types electrical appliances and electromechanical equipment to effectively achieve long-distance interconnection, security prevention and control, fault prediction and prevention. Maintenance, energy saving and consumption reduction.

2 NB IOT meter Technical Parameter

Voltage： 3*180~240V

Current: 5（80）A

Frequency： 50-60Hz

Accuracy class： 1

Standard： IEC62052-11、IEC62053-21

Starting current： 0.004Ib

Power consumption： ≦10VA

Impulse constant： 1000imp/kWh

Installation： Din-rail

Temperature range： -20~70℃

Average humidity： ≦75%

IOT WIFI Triphase Meter NW： 0.12KG

Dimensions： 100*76*65mm

Communication： WIFI/RS485
