Acrel BD series power transmitter is a device that converts electrical parameters such as current, voltage, frequency, power, power factor, etc. in the power grid into linear DC analog signals or digital signals through isolation.Widely used in PLC system, automation industry, water treatment company, etc.

BD-3P Three Phase Power Transducer can measure active power, reactive power, and isolate and transmit analog signals.can also measure voltage, current, power, power factor, frequency; 1.2 times the rated value overload; DC 0-5V/0-10V/0-20mA/4-20mA can be selected as analog output.

Input:AC 1A/5A,AC 100V/22V/380V

Output:DC 0-20mA/4-20mA/0-5V/0-10V

Power supply:AC 85~265V,DC 100V~350V,DC 24V

Accuracy:Class 0.5

Video of 3 Phase Power Transducer

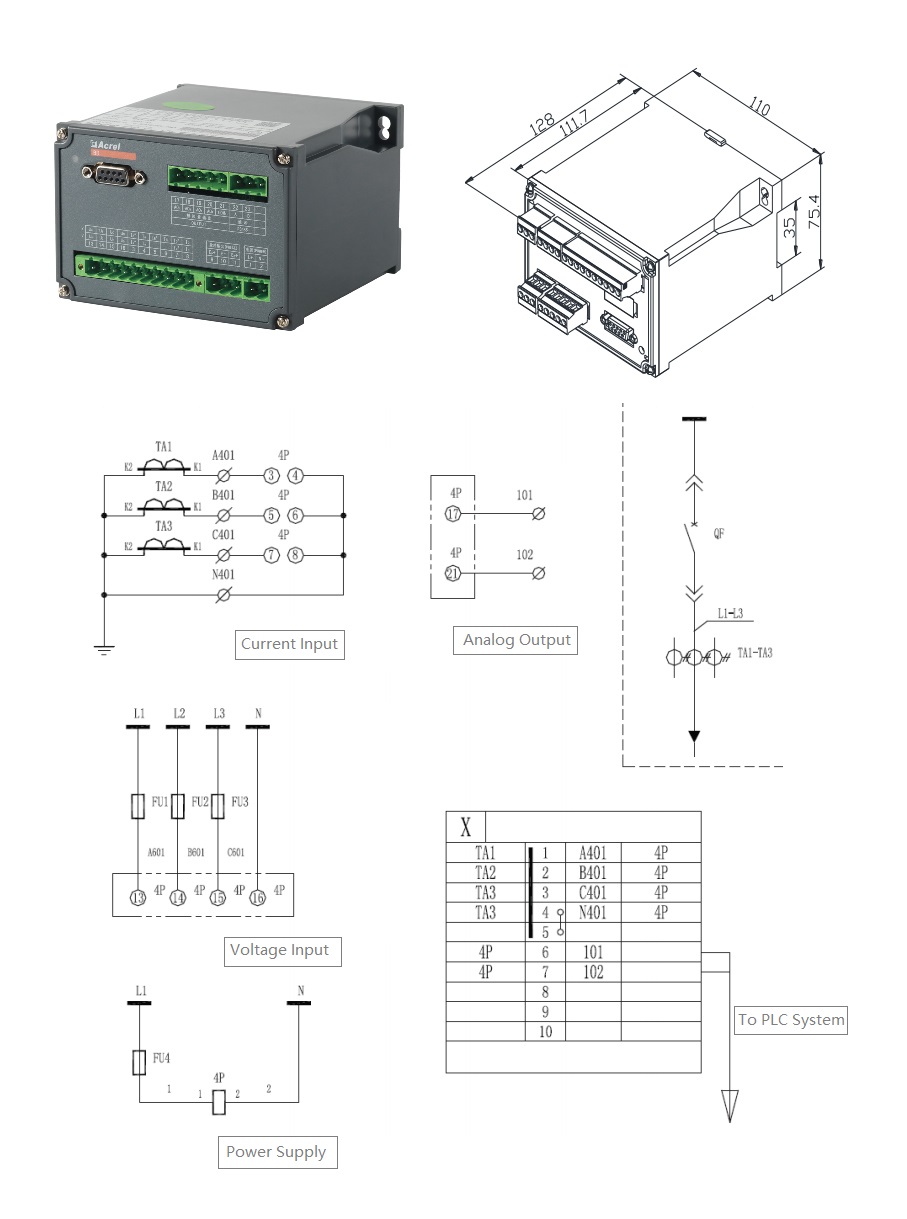

Wiring of BD-3P Three Phase Power Transducer

BD-3P Three Phase Power Transducer interface 3/4,5/6,7/8 is A/B/C phase current input,interface 13/14/15/16 is A/B/C/N phase voltage input,interface 1/2 power supply L/N(AC 85~265V,DC 100V~350V,DC 24V),interface 9/10/11 is the Ep/Eq pluse output,interface 17/18/19/20/21 is the four channels analog output DC 4~20mA,0~20mA,0~5V,0~10V which can connect to PLC system etc.
