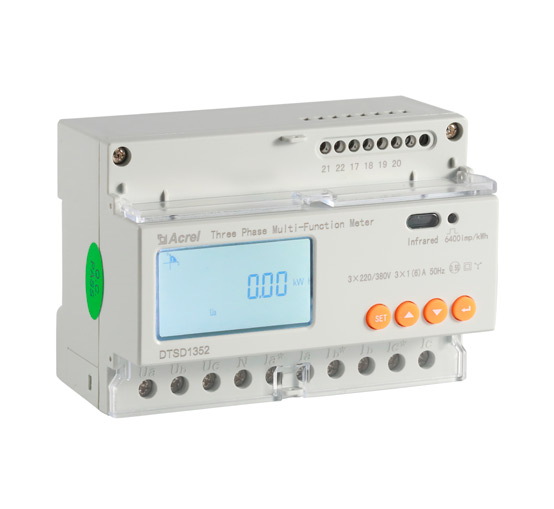

Acrel sungrow smart meter DTSD1352 din rail type multi-function energy meter is an intelligent instrument designed mainly for energy statistics and management needs of power systems, industrial and mining enterprises, and public facilities. Integrate common power parameter measurement and power metering and assessment management, and provide various power data statistics for the past 48 months. sungrow dtsd1352 has 2~31 times sub-harmonic and total harmonic content detection, with switch input and switch output, it can realize "remote signal" and "remote control" functions, and has alarm output.

Wiring of Acrel DTSD1352 sungrow-C Solar Inverter Smart Meter

sungrow smart meter dtsd1352 Solar inverter smart meter interface Ua/Ub/Uc is A/B/C phase voltage input, interface N is the neutral wire, interface Ia*/Ia is A phase current inlet/outgoing wire, interface Ib*/Ib is B phase current inlet/outgoing wire, interface Ic*/Ic is C phase current inlet/outgoing wire, interface 21/21 is RS485 A/B, interface 17/18 is Active energy,19/20 is reactive energy.

Acrel DTSD1352-C Solar Inverter Smart Meter Application

1. Connected to solar inverter in PV solar system

2. Industrial and mining enterprises's kwh meausrenment.

3. Calculate the electricity consumption in power supply system

4. Measurement of electrical energy in large public buildings

For more information about smartmeter sungrow and dtsd1352 manual, please feel free to contact us!

If you want to know more kinds of measure current transformer, please visit our website.
