Acrel data center monitoring system solution is to improve the power efficiency of the data center and reduce the energy consumption of equipment. First of all, monitor each electrical load, and there are many load loops in the data center. Traditional measuring instruments cannot meet the requirements of cost, volume, installation, construction and other aspects. Therefore, it is necessary to adopt AMC Series Data Center Monitor Module suitable for the centralized monitoring requirements of the data center device.

AMC Series Data Center Monitor Module For Sale

This series of products has a compact design, adapts to the characteristics of many load circuits in data centers, realizes high integration of monitoring circuits, and can accurately monitor each AC or DC load in the data center.

AMC16Z-ZA AC Multi Channel Energy Meter

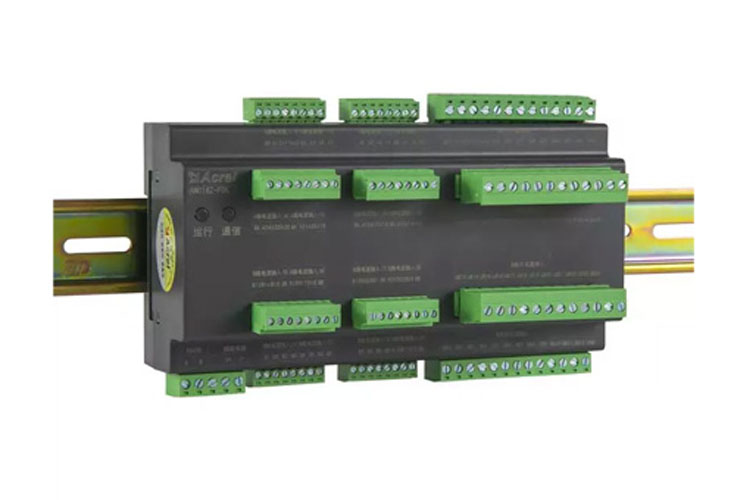

AMC16Z-FAK48 Multi Channel Din Rail AC Power Meter

AMC16Z-ZD DC Multi Channels Din Rail Power Meter

AMC16Z-FDK24/48 DC Multi Circuits Energy Meter

AMC100-FAK30/48 Multi Channel Din Rail Ac Power Meter

AMC100-ZA AC Multi Channel Energy Meter

AMC Series Data Center Monitor Module Data Sheet

Type Model Function description

AMC16Z-ZA Monitor the full power parameters of A+B double-way three-phase AC incomingcircuit,6-way switch state monitoring,2-way alarm output,2-way leakagemonitoring, 1-way temperature and humidity detection,1-way RS485communication, and phase-sequence detection.

AMC16Z-FA Monitor the full power parameters of 24 branches of A+B double-way ACoutgoing line,1-way RS485 communication and phase adjustment.

AMC16Z-FAK24 Monitor the full power parameters and switch state of 24 branches of A+Bdouble-way AC outgoing line,1-way RS485 communication and phaseadjustment.

AMC16Z-FAK48 Monitor the full power parameters and switch state of 48 branches of A+Bdouble-way AC outgoing line,1-way RS485 communication and phaseadjustment.

AMC16Z-KA Wet contact,monitoring A+B total 48 branch switch state,1-way RS485communication.

AMC16Z-KD Dry contact,monitoring A+B total 48 branch switch state,1-way RS485communication.

AMC16Z-AC220V AC220V extended power supply,and use when the monitoring circuit is beyond 96 branches of A+B

AMC100-ZA Monitoring the full power parameters of the A+B dual three-phase AC incoming circuit, 8 switching status inputs, 4 switching status outputs, 2 leakage monitoring, 1 temperature and humidity detection, 3 RS485 communications

AMC100-FAK30 Monitor the full power parameters and switch status of a total of 30 branches of A+B dual AC outlets, and 1 RS485 communication

AMC100-FAK48 Monitor the full power parameters and switch status of a total of 48 branches of A+B dual AC outlets, and 1 RS485 communication

AMC100-FA30 Monitor the full power parameters of a total of 30 branches of A+B dual AC outlets, and 1 RS485 communication

AMC100-FA48 Monitor the full power parameters of a total of 48 branches of A+B dual AC outlets, and 1 RS485 communication

AMC100-KA30 Wet contact, monitor the switching status of 30 branches A+B, 1 RS485 communication

AMC100-KA48 Wet contact, monitor the switching status of 48 branches A+B, 1 RS485 communication

AMC100-KD30 Dry contact, monitor the switching status of 30 branches A+B, 1 RS485 communication

AMC100-KD48 Dry contact, monitor the switching status of 48 branches A+B, 1 RS485 communication

AMC100-FT30 1 way RS485 communication, 30 way temperature measurement

AMC100-FT48 1 way RS485 communication, 48 way temperature measurement

Why it is important for A Data Center Monitoring System?

With the rapid development of data centers, the energy consumption of data centers has become more and more prominent, and the energy management and power supply and distribution design of data centers have become hot issues.

Acrel AMC series AC precision power distribution monitoring device is a measurement device specially designed for data center server power management.
