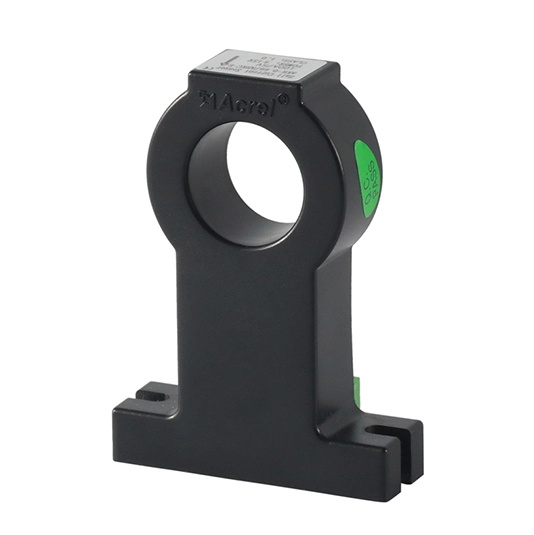

ACREL AHKC-E SERIES HALL DC VOLTAGE TRANSDUCER

The primary and secondary grades of the AHKC-E series dc current measurement using hall effect sensor, which can measure direct current, alternating current, and pulse current, are insulated from one another. DC, AC, and pulse currents can be measured using the insulated primary and secondary of the AHKC-E series dc hall current sensor.

Specifications of AHKC-E Series DC Hall Effect Voltage Transducer

Parameters Index

Rated Input Current 0~(50-500)A

Rated Output Voltage ±5V/±4V

Accuracy Class 1

Power Voltage DC±15V (allowable fluctuation±20%)

Zero Offset Voltage ±20mV

Offset Voltage Drift ≤41.0mV/C

Linearity
